TE Connectivity AMP Connectors 3-1123723-8 — Pin Headers

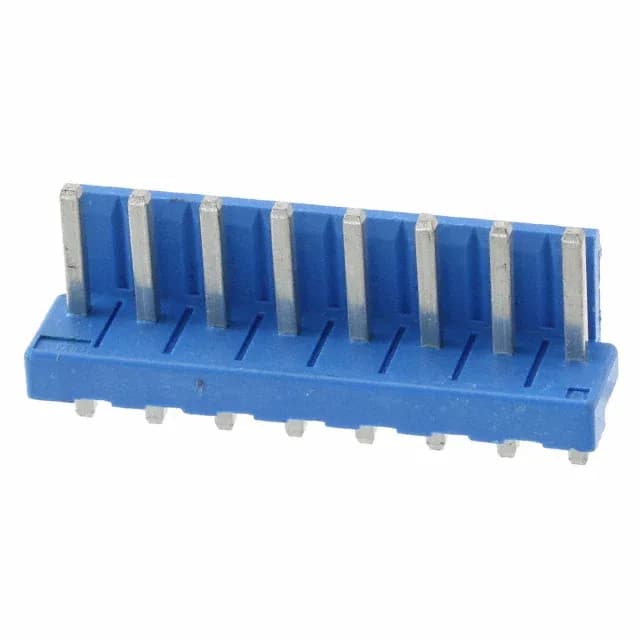

3-1123723-8 TE Economy Power Header 8 Pos 3.96mm Pitch

MPN3-1123723-8
Active

TE Connectivity AMP Connectors Economy Power header, 3-1123723-8, 8 positions, 0.156 inch (3.96 mm) pitch, male pin, tin-plated brass contacts rated 7.5 A per circuit at 250 VAC, 1-wall shroud, friction lock, through-hole solder termination, PBT GF insulator rated UL94 V-0, operating range -25°C to 105°C.

$0.4400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 3-1123723-8 datasheet (PDF)
RoHSROHS3 Compliant
SeriesEconomy Power
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-1123723-8 key specifications
ParameterValue
SeriesEconomy Power
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current rating7.5A
Operating temperature-25°C ~ 105°C
Contact materialBrass
Insulation colorBlue
Insulation height0.118\" (3.00mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled

All specifications

3-1123723-8 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Lighting
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions8
Contact finish - postTin
Contact length - post0.146\" (3.70mm)
Overall contact length0.567\" (14.40mm)
Contact finish - matingTin
Contact length - mating0.303\" (7.70mm)

Product details

8-Position 3.96 mm Pitch Header with Friction Lock

The 3-1123723-8: This is a TE Connectivity Economy Power header, 8 positions on a 0.156 inch (3.96 mm) pitch, single row, through-hole solder termination. Rated 7.5 A per circuit at 250 VAC, with tin-plated brass contacts and a PBT GF insulator rated UL94 V-0. Operating range spans -25°C to 105°C.

Mating and Locking Detail

The friction lock provides a positive retention without requiring tools — the mating receptacle clicks into place and resists accidental disconnection.

Frequently asked questions

How can I order 3-1123723-8 or get a price?

Submit an RFQ with your target quantity. We source this active-production part per order; current pricing and lead time are confirmed at quote time.

What is the pin pitch of 3-1123723-8?

The pitch is 0.156 inch (3.96 mm).

Does 3-1123723-8 have a friction lock?

Yes, the fastening type is friction lock.

What is the current rating of 3-1123723-8 per contact?

7.5 A per circuit.
