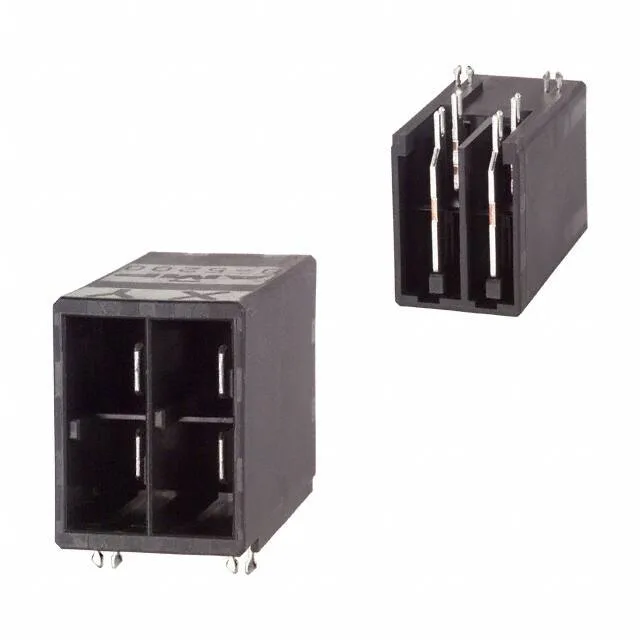

TE Connectivity AMP Connectors 3-1318983-6
MPN3-1318983-6
Active
CONN HEADER R/A 4POS 10.16MM
$17.47Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDynamic D-5200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dynamic D-5200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 630V |
| Current rating | 45A |
| IP rating | IP20 |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 1.215\" (30.86mm) |
All specifications
| Parameter | Value |
|---|---|
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.400\" (10.16mm) |
| Positions | 4 |
| Row spacing - mating | 0.400\" (10.16mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Silver |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
