TE Connectivity AMP Connectors 3-1376388-4 — Connector Housings

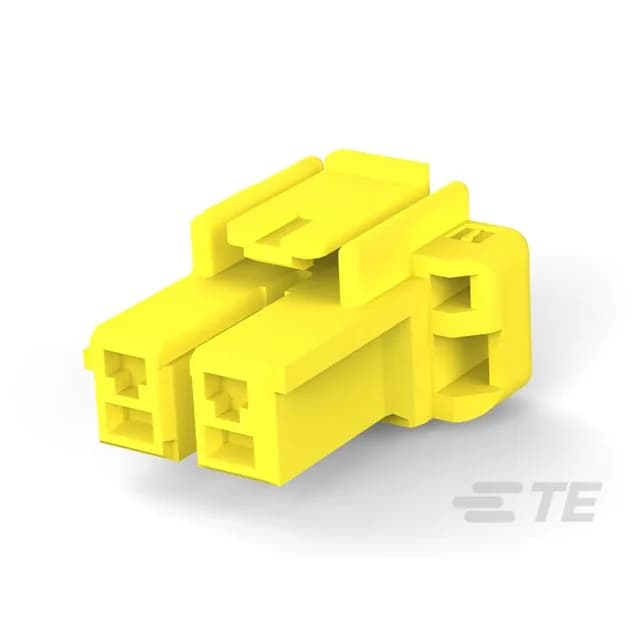

TE Power Key 3-1376388-4, 2-Pos Plug Housing, 5.00mm

MPN3-1376388-4
Active

TE Connectivity Power Key series, plug housing, 3-1376388-4, 2 positions, 1 row, 0.197" (5.00mm) pitch, free hanging (in-line), crimp termination, latch lock, yellow PA66, bulk.

$0.3700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPower Key
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-1376388-4 specifications
ParameterValue
SeriesPower Key
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Lock
Operating temperature-40°C ~ 105°C
ColorYellow
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
NoteContacts Not Included
Pitch0.197\" (5.00mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions2

Product details

What this Power Key 2-position housing is

The TE Connectivity 3-1376388-4 is a 2-position plug housing from the Power Key series, designed as the in-line half of a wire-to-board or wire-to-wire power interconnect. The yellow glass-filled PA66 housing carries a latch lock that clicks into the mating header for vibration-resistant retention — useful in automotive and industrial environments where the connection sees mechanical shock.

Contacts are ordered separately — here's what you need

This housing ships without contacts — the note on the line is explicit. You need to source the matching Power Key female crimp terminals separately. The crimp termination accepts the wire gauge range specified for the series; the terminal is inserted into the housing cavity and retained by the latch lock once fully seated. Order the housing and terminals as separate BOM lines to avoid a partial shipment.

Frequently asked questions

What contacts do I need for 3-1376388-4?

The 3-1376388-4 housing requires separately ordered Power Key female crimp terminals. The exact terminal part number depends on your wire gauge; consult the Power Key series terminal listing for the matching contact.

Is 3-1376388-4 RoHS compliant?

Yes, 3-1376388-4 is ROHS3 compliant, meeting the current EU restriction directive.
