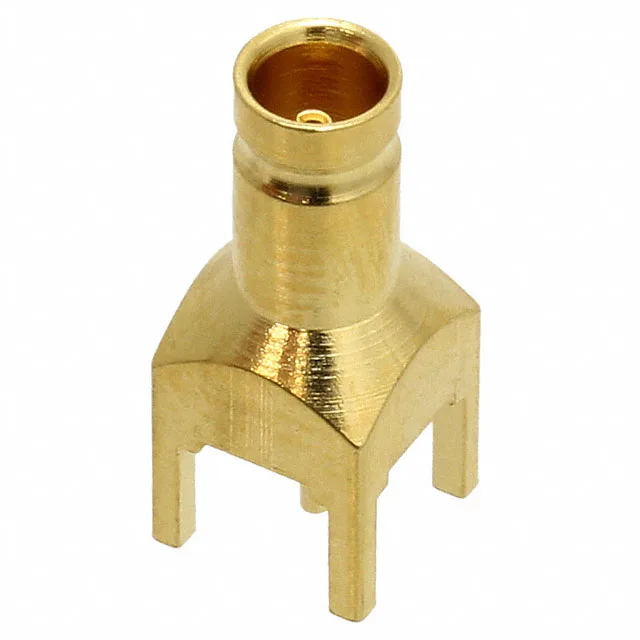

3-1393670-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 3-1393670-4, 1.0/2.3 Jack, 50 Ohm, 10 GHz

MPN3-1393670-4
Active

TE Connectivity 1.0/2.3 series, 3-1393670-4, jack female socket, 50 Ohms, 10 GHz, 1 port, through hole, solder termination, gold plated center contact, bulk.

$8.6763Ref. price · indicative, final on quote
3-1393670-4 datasheet
StockIn Stock (38)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

3-1393670-4 Technical Specifications
ParameterValue
Mounting typeThrough Hole
Connector type1.0/2.3
Fastening typePush-Pull
Frequency - max10 GHz
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance50 Ohms
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The 3-1393670-4: The through-hole mounting and solder termination anchor it to the PCB for a mechanically stable RF launch.

50 Ohm Impedance and 10 GHz Bandwidth — What They Mean for Signal Integrity

The 10 GHz upper frequency limit covers L-band through X-band applications, including 5G sub-6 GHz and some C-band satellite links.

Frequently asked questions

Is 3-1393670-4 a female jack or plug?

The 3-1393670-4 is a jack, female socket in the 1.0/2.3 connector interface.
