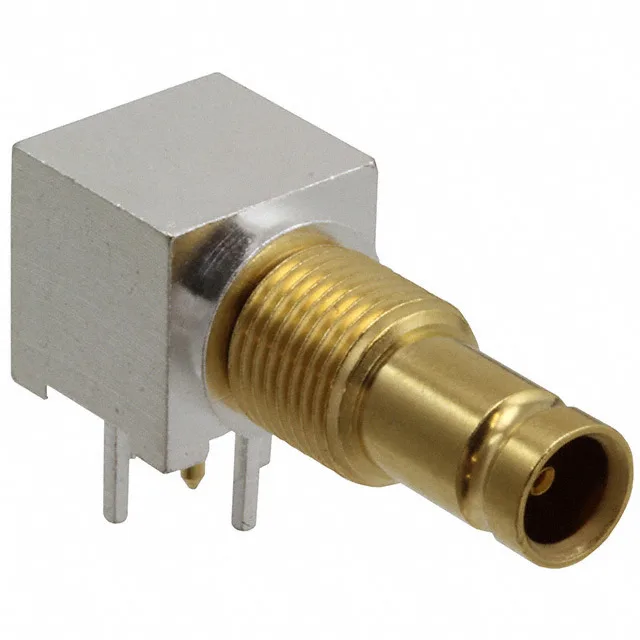

3-1393670-9 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 3-1393670-9 1.0/2.3 Jack, 50 Ohm, 10 GHz

MPN3-1393670-9
Obsolete

TE Connectivity 1.0/2.3 jack, female socket, 50 Ohms, 10 GHz max frequency, through-hole right-angle, solder termination, gold-plated beryllium copper center contact, 500 mating cycles, Bulk.

$11.0900Ref. price · indicative, final on quote
3-1393670-9 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

3-1393670-9 Technical Specifications
ParameterValue
Mounting typeThrough Hole, Right Angle
Connector type1.0/2.3
Fastening typePush-Pull
Frequency - max10 GHz
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance50 Ohms
Body finishSilver
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

Obsolete 1.0/2.3 Coaxial Jack — Sourcing and Fit

The 3-1393670-9: This is the receptacle side — it mates with a 1.0/2.3 plug (male) connector. There is no listed direct replacement from TE Connectivity. The 1.0/2.3 interface is not compatible with SMA or BNC connectors; it is a distinct coaxial standard used primarily in European telecom and test equipment.

Signal Path — 50 Ohm, 10 GHz Ceiling

The 10 GHz maximum frequency covers L-band, S-band, and lower C-band signals. The PTFE dielectric keeps insertion loss stable across the band.

Procurement Bottom Line

This is a last-time-buy or surplus-only part. No official replacement exists. Confirm the mating plug interface before committing the line.

Frequently asked questions

Is 3-1393670-9 obsolete?

Yes, TE Connectivity has marked the 3-1393670-9 as Obsolete. There is no direct replacement listed. It is available through surplus and broker channels — submit an RFQ for current availability and pricing.

Is 3-1393670-9 compatible with SMA connectors?

No. The 3-1393670-9 uses the 1.0/2.3 interface, which is a different coaxial standard from SMA. They are not mechanically or electrically compatible — do not attempt to mate them.
