TE Connectivity AMP Connectors 3-1418448-2 — Connector Housings

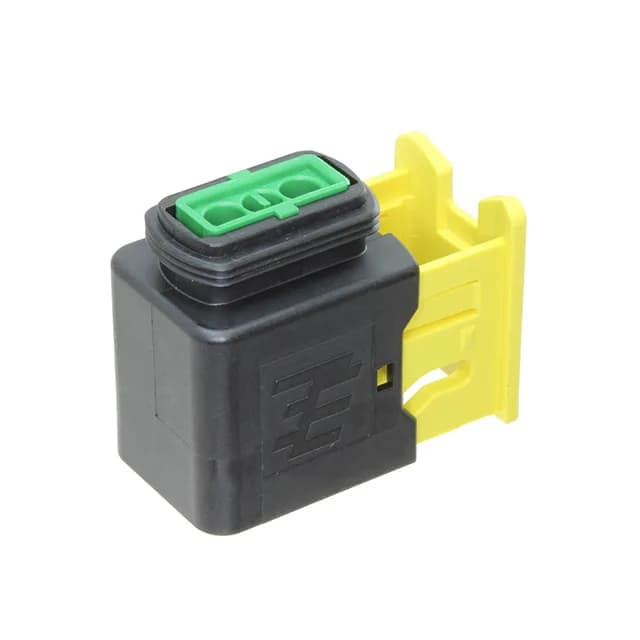

TE 3-1418448-2 MCP 1.5K Receptacle, 2-Pos, 8mm, Sealed

MPN3-1418448-2
Active

TE Connectivity Heavy Duty Sealed Connector Series, MCP 1.5K, receptacle housing, 2 positions, 1 row, 0.315" (8.00mm) pitch, free hanging (in-line), crimp termination, green PBT, sealed, slide-on fastening.

$1.6200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHeavy Duty Sealed Connector Series, MCP 1.5K
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-1418448-2 specifications
ParameterValue
SeriesHeavy Duty Sealed Connector Series, MCP 1.5K
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeSlide-On
Operating temperature-40°C ~ 140°C
ColorGreen
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.315\" (8.00mm)
PackageBulk
FeaturesSealed
Rows1
Contact terminationCrimp
Positions2

Product details

Sealed 2-Position Inline Receptacle for MCP 1.5K Terminals

It is a free-hanging (in-line) housing with a single row of cavities on 0.315" (8.00mm) pitch, designed to accept MCP 1.5K female socket contacts via crimp termination. The green glass-filled PBT housing carries a sealed feature rating, making it suitable for harness sections exposed to moisture, dust, or washdown environments.

The 8.00mm pitch and single-row layout accept standard MCP 1.5K socket contacts, typically used with 0.5 to 1.5 mm² wire. The green colour is a visual key for the receptacle side; the plug in this series is often black. No secondary TPA (terminal position assurance) is listed for this housing, so verify the terminal fully seats by feel or with the appropriate insertion tool.

Frequently asked questions

What is the part number 3-1418448-2 used for?

Buyers need to confirm this receptacle housing matches their application (e.g., wire-to-wire, sealed environment).

What is the price and lead time for 3-1418448-2?

Sourcing buyers need cost and availability to plan procurement and avoid production delays.

Does 3-1418448-2 include contacts?

Users must know contacts are sold separately to order the correct complete connector set.

What is the pinout or cavity arrangement for 3-1418448-2?

Design engineers need to verify wiring and mating compatibility with other inserts or headers.

Are there any equivalent or replacement parts for 3-1418448-2?

Brokers and buyers explore alternatives for cost reduction, availability, or obsolescence mitigation.

Is 3-1418448-2 still active or has it been discontinued?

Lifecycle status determines long-term support; discontinued parts may require redesign.
