TE Connectivity AMP Connectors 3-1418480-1 — Connector Housings

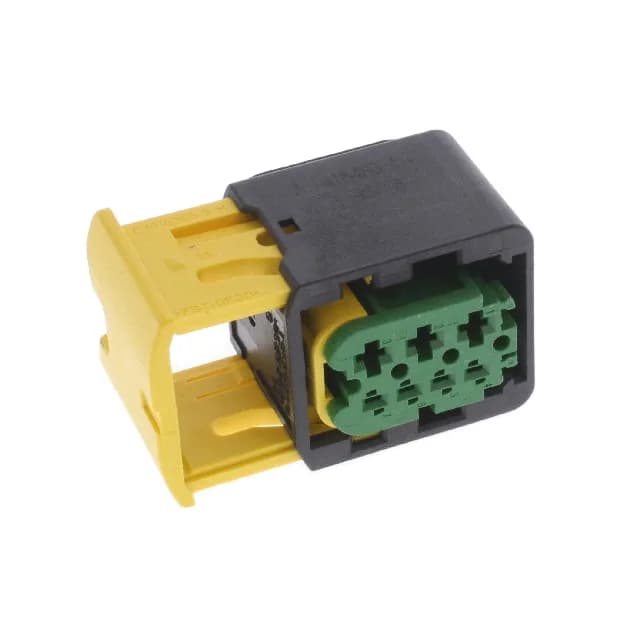

TE 3-1418480-1 MCP 1.5K/2.8 Receptacle Housing, 7 Pos

MPN3-1418480-1
Active

TE Connectivity MCP 1.5K/2.8 Heavy Duty Sealed Connector Series, receptacle housing, 7 positions, 2 rows, 6.00mm row spacing, free-hanging in-line, crimp termination, slide-on fastening, green PBT, -40°C to 140°C, sealed, contacts not included.

$2.2100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 3-1418480-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesHeavy Duty Sealed Connector Series, MCP 1.5K/2.8
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-1418480-1 specifications
ParameterValue
SeriesHeavy Duty Sealed Connector Series, MCP 1.5K/2.8
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeSlide-On
Operating temperature-40°C ~ 140°C
ColorGreen
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
PackageBulk
FeaturesSealed
Row spacing0.236\" (6.00mm)
Rows2
Contact terminationCrimp
Positions7

Product details

The TE 3-1418480-1 is a 7-position, dual-row receptacle housing from the MCP 1.5K/2.8 series — TE's Heavy Duty Sealed Connector line built for engine-bay and transmission-mounted harnesses. It accepts female socket terminals (sold separately) and uses a slide-on fastening system that locks the mating plug without tools. The green PBT housing is glass-filled for dimensional stability under heat, and the -40°C to 140°C operating range puts it in the underhood temperature class, not just a cabin-grade connector.

Ordering only the housing and expecting a terminated assembly is the most common miss on this part.

Sealed for Wet Locations

The housing is marked as sealed, which in the MCP 1.5K/2.8 context means it carries interfacial and wire-seal capability when mated with the correct plug and properly crimped terminals.

Frequently asked questions

Where can I buy the TE 3-1418480-1 and how do I get a price?

Submit a quote request for current pricing and availability — figures are confirmed at quote time, not listed here.

Does 3-1418480-1 include contacts?

No — the housing ships with contacts not included. You must order the matching MCP 1.5K or 2.8 female socket terminals separately and crimp them onto the wire.

Is 3-1418480-1 a sealed connector?

Yes, the housing is listed as sealed, designed for wet or splash-prone environments when mated with the correct plug and properly sealed terminals.
