Right-angle SMT header, 3.00 mm pitch, 10 circuits
Current rating and wire gauge dependence
Derate above 85°C per the series derating curve. Voltage rating is 250 V, which suits low-voltage DC and AC signal/power distribution inside equipment.
3-1445100-0 TE Connectivity Micro MATE-N-LOK Header SMD R/A
MPN3-1445100-0
Active

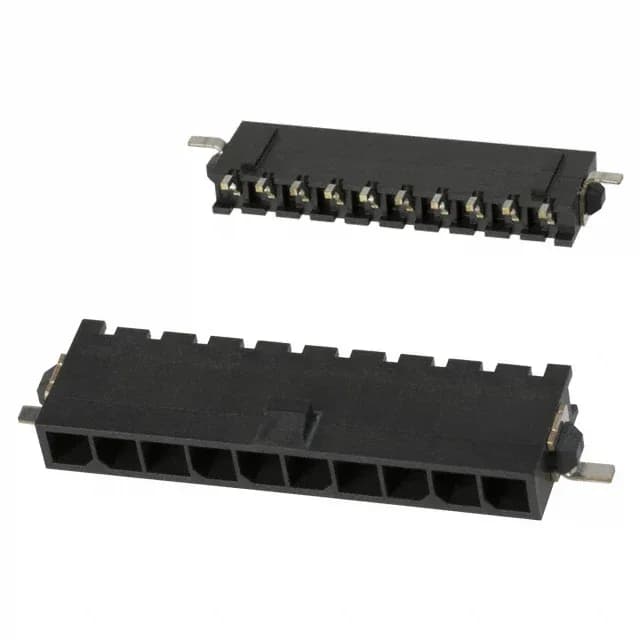

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 3-1445100-0, 10-position single-row, 3.00 mm pitch, surface-mount right-angle, gold-plated male pins, shrouded with locking ramp.
$3.0179Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.152\" (3.85mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 3-1445100-0 and how do I get a price?
3-1445100-0 is sourced through independent distribution against an RFQ. Submit a request with your target quantity and we will confirm availability and pricing — no stock-holding claim, quoted per order.
What is the mating connector for 3-1445100-0?
This header mates with Micro MATE-N-LOK receptacle housings that accept crimp terminals — the same 3.00 mm pitch, single-row, 10-position configuration. Confirm the receptacle part number against your harness.
What is the pitch of 3-1445100-0?
The mating pitch is 0.118 inches (3.00 mm), single-row.
Is 3-1445100-0 RoHS compliant?
Yes, it is ROHS3 Compliant.
