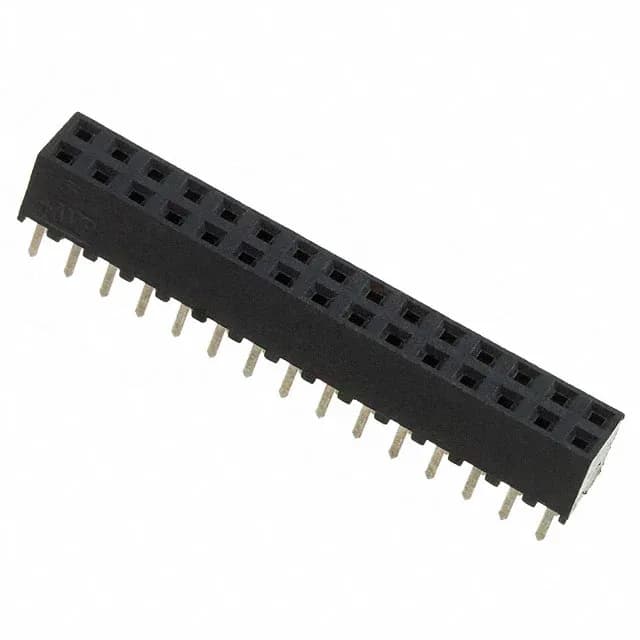

30-position dual-row 2.00 mm pitch board-to-board receptacle
The through-hole solder termination and black PA66 housing with UL94 V-0 flammability rating suit it for controlled-environment PCB stacking inside equipment enclosures. The gold-plated mating contacts (8.00 µin thickness) handle moderate mating cycles without corrosion, while the tin-plated posts (80.0 µin) provide a reliable solder joint.
How it compares to similar AMPMODU receptacles
Compared to the 5-position 1376775-2, this 30-position version uses the same 2.00 mm pitch, dual-row layout, and gold mating finish — the difference is circuit count and board footprint length. The 12-position 1-2823056-2 uses a wider 2.54 mm pitch and tin-plated mating contacts, which changes the board routing and lowers mating cycle life.
