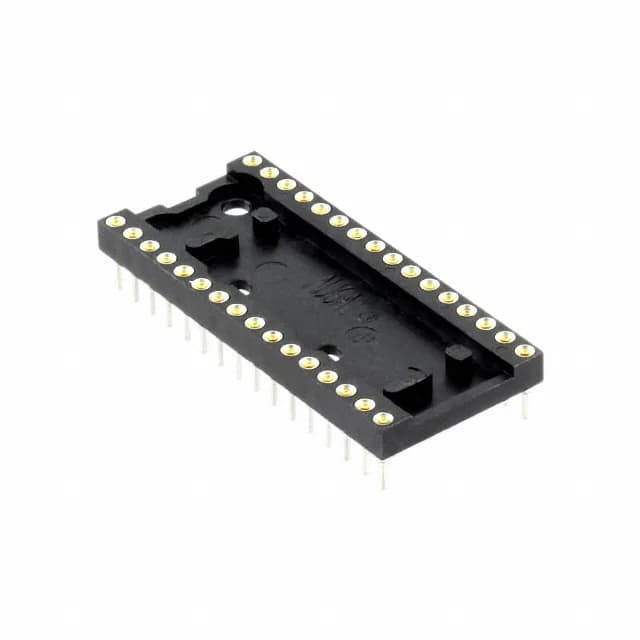

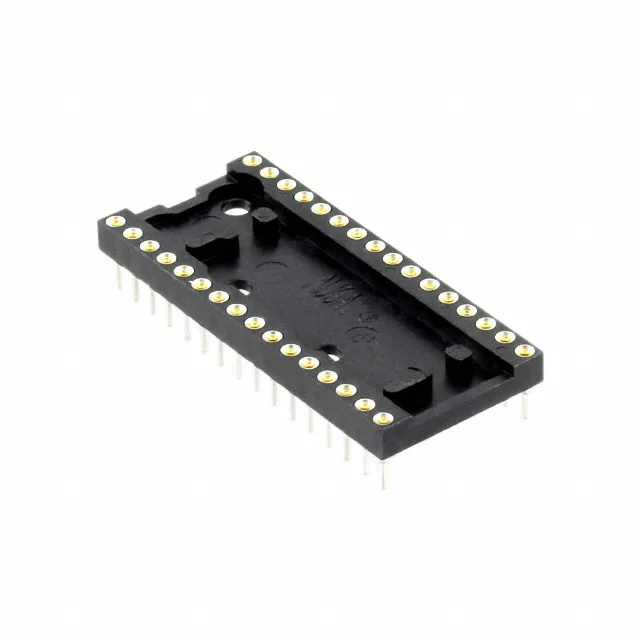

TE Connectivity AMP Connectors 500 Series DIP socket, order code 3-1571550-0, 32 positions (2 x 16), 0.100" (2.54mm) pitch, 0.6" (15.24mm) row spacing, gold-plated mating contacts, through-hole solder termination, closed frame.
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | 500 |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 25.0µin (0.63µm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 32 (2 x 16) |
TE Connectivity lists the 3-1571550-0 as Obsolete. No pin-compatible, form-fit-function successor from TE is documented for this 500 Series DIP socket.
Gold finish on both mating and post contacts is 25.0 µin (0.63 µm) thick. The 0.125" (3.18mm) termination post length suits standard through-hole soldering on a 0.062" board.
