Termination and assembly
The 3-1634688-4: Gold mating finish at 10.0µin (0.25µm) supports repeated insertion cycles in field-service applications.
Sourced through independent surplus channels; quantities confirmed at RFQ.

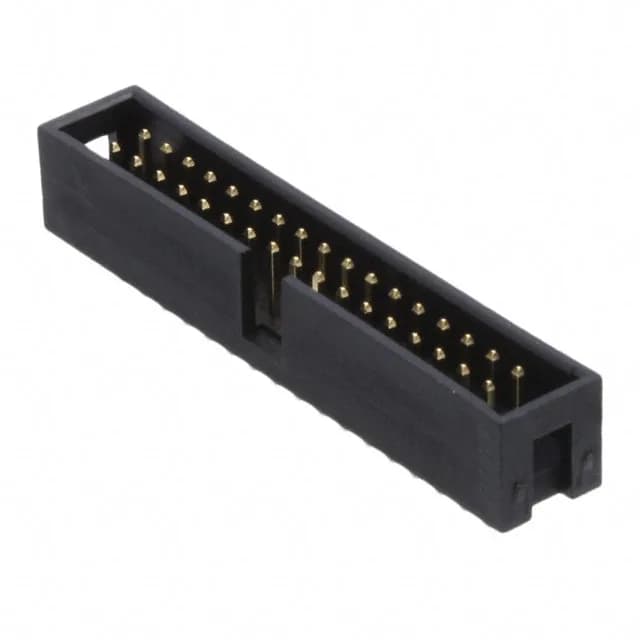

TE AMP-Latch 3-1634688-4 Header, 34 Pos, 2.54mm, Obsolete
MPN3-1634688-4
Obsolete
TE Connectivity AMP-Latch header, order code 3-1634688-4, 34 positions, dual row, 0.100" (2.54mm) pitch, 3 A, shrouded - 4 wall, gold mating contacts, through-hole, solder termination.
$3.7300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.343\" (8.71mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 34 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.228\" (5.80mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
