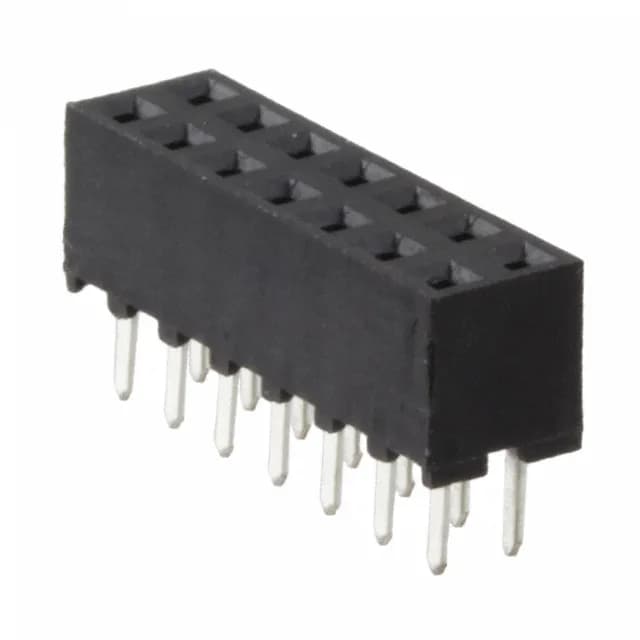

TE Connectivity AMPMODU, 14-position dual-row receptacle, 2.00 mm pitch, through-hole solder, gold-plated mating contacts, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.177\" (4.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tray |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 14 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
The through-hole solder termination anchors it to the PCB, and the push-pull fastening allows tool-less mating and unmating.
The 0.177" (4.50 mm) insulation height and 0.102" (2.60 mm) post length define the z-height budget above the board.
The thermoplastic insulation material maintains dimensional stability across this span.
As a board-to-board receptacle, it mates with a 2.00 mm pitch pin header from the AMPMODU series.
