TE Connectivity AMP Connectors 3-1734506-3 — Female Socket Headers

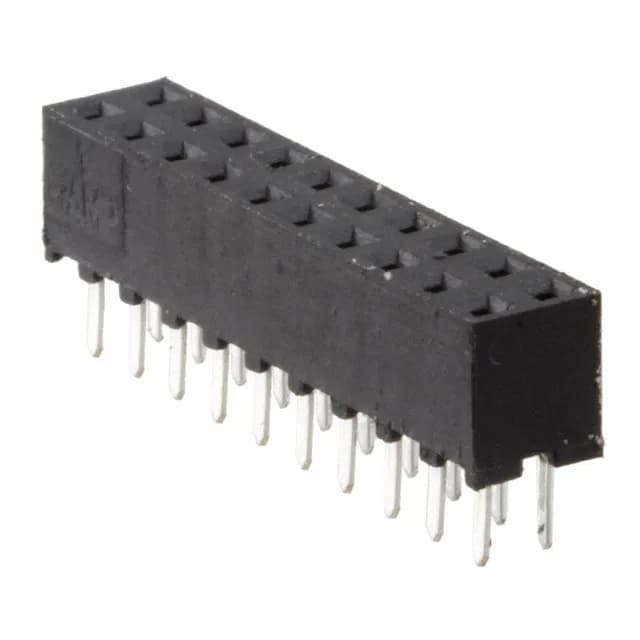

3-1734506-3 TE Connectivity AMPMODU 20-Pin 2.00mm Receptacle

MPN3-1734506-3
Active

TE Connectivity AMPMODU, 3-1734506-3, board-to-board receptacle, 20 positions, 2.00mm pitch, dual row, through-hole, gold mating finish, UL94 V-0

$1.1900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-1734506-3 key specifications
ParameterValue
SeriesAMPMODU
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating250VAC
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.177\" (4.50mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

3-1734506-3 additional specifications
ParameterValue
StyleBoard to Board
PackageTray
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions20
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold
Contact finish thickness - post80.0µin (2.03µm)
Contact finish thickness - mating10.0µin (0.25µm)

Product details

The 3-1734506-3: This is a 20-position dual-row female socket receptacle from the AMPMODU series, pitched at 0.079" (2.00mm) on both the row and column spacing.

Board-to-board stacking fit

In a vibration-prone assembly, a header with a locking ramp or board locks would add mechanical security, but for a stacked board pair inside a stationary enclosure the push-pull interface is sufficient. When selecting the mating header, verify the mated stack height against the enclosure clearance.

The base product number is 1734506.

Frequently asked questions

What is the closest alternative to 3-1734506-3?

If the BOM allows a higher circuit count, it is a direct footprint match — the board layout must accommodate the extra length.

Where can I buy 3-1734506-3?

Sourced to order against the BOM quantity.
