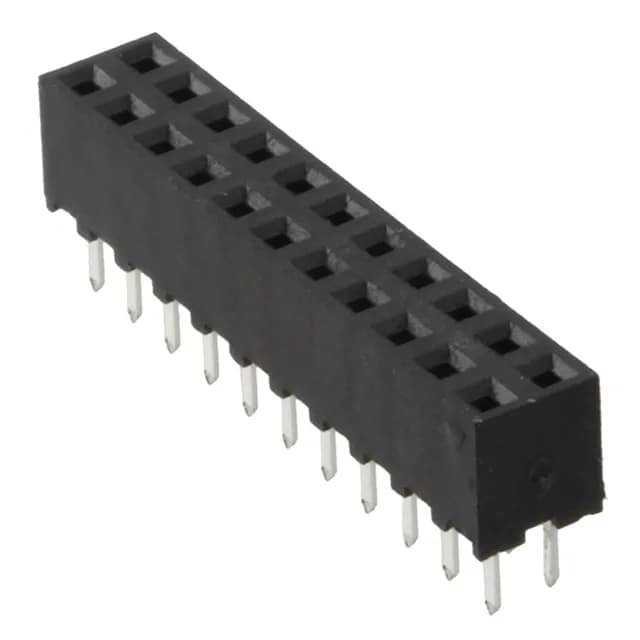

TE Connectivity AMPMODU receptacle, order code 3-1734506-4, 22 positions, dual row, 2.00 mm pitch, 250 VAC, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.177\" (4.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tray |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 22 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
The 3-1734506-4: Mating pitch is 2.00 mm with a row spacing of 2.00 mm; the through-hole termination and 0.102" (2.60 mm) post length suit standard PCB thicknesses.
UL94 V-0 thermoplastic housing, rated -40°C to 105°C.
The receptacle uses a push-pull fastening system.
