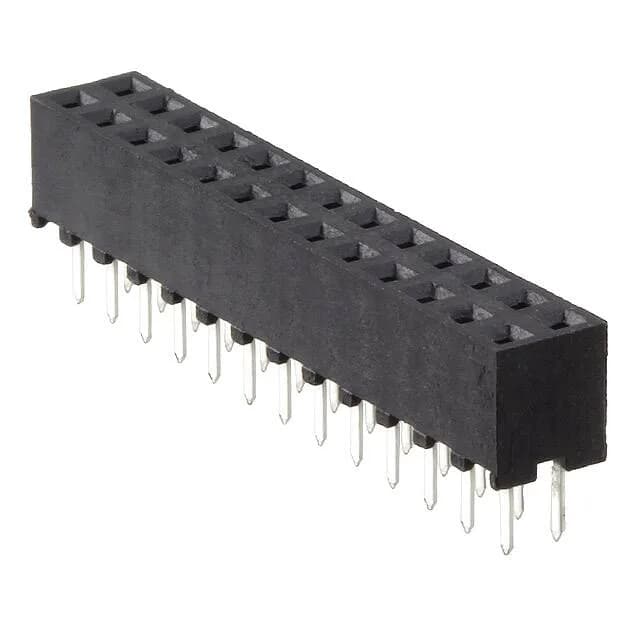

TE Connectivity AMPMODU series, 3-1734506-6, board-to-board receptacle, 26 positions, 2.00 mm pitch, dual-row, through-hole solder termination, gold mating finish, black thermoplastic housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Operating temperature | -40°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.177\" (4.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tray |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 26 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
The 3-1734506-6 is a 26-position, dual-row board-to-board receptacle from the TE AMPMODU series.
Mates with AMPMODU 2.00 mm pitch pin headers (male pin headers, square pins). The through-hole termination requires the PCB to have plated through-holes at the 2.00 mm grid; the 0.102" (2.60 mm) post length accommodates standard board thicknesses. All 26 positions are loaded — no optional or dummy positions.
Designers need to ensure mating header pin spacing matches exactly.
