TE Connectivity AMP Connectors 3-1734506-8 — Female Socket Headers

3-1734506-8 TE AMPMODU Receptacle 30 Pos 0.079" Gold

MPN3-1734506-8
Active

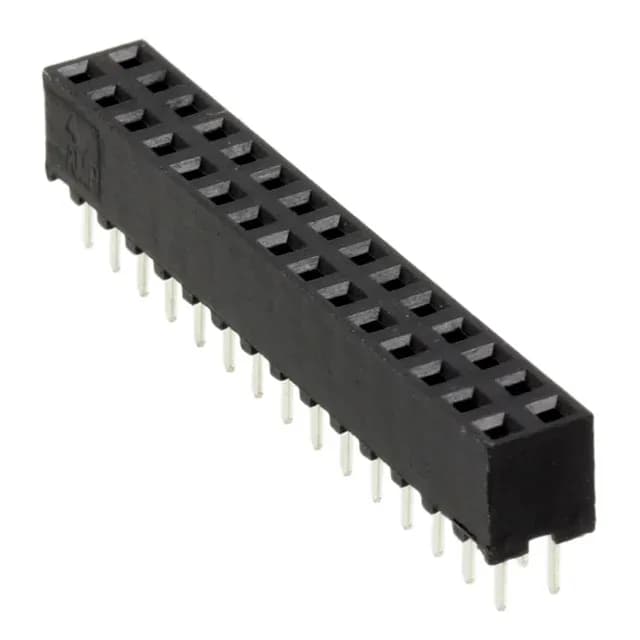

TE Connectivity AMP Connectors AMPMODU series, 3-1734506-8, board-to-board receptacle, 30 positions, dual-row, 0.079" (2.00 mm) pitch, through-hole solder termination, gold mating finish, black thermoplastic housing, UL94 V-0.

$1.7600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-1734506-8 key specifications
ParameterValue
SeriesAMPMODU
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating250VAC
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.177\" (4.50mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

3-1734506-8 additional specifications
ParameterValue
StyleBoard to Board
PackageTray
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions30
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold
Contact finish thickness - post80.0µin (2.03µm)
Contact finish thickness - mating10.0µin (0.25µm)

Product details

The 3-1734506-8: This is a board-to-board receptacle from the AMPMODU series, 30 positions loaded in two rows with a 0.079" (2.00 mm) pitch.

Gold mating finish for signal reliability

The mating contacts are gold-plated at 10.0 µin (0.25 µm) over phosphor bronze, with tin-plated posts at 80.0 µin (2.03 µm).

The UL94 V-0 thermoplastic insulation handles the thermal envelope without issue. For current, the limiting factor is the contact density and pitch — derate per the series guidelines if running near the thermal ceiling.

Frequently asked questions

What is the pitch and position count of 3-1734506-8?

It is a 30-position, dual-row receptacle with a 0.079" (2.00 mm) pitch on both the mating and row spacing. All positions are loaded.
