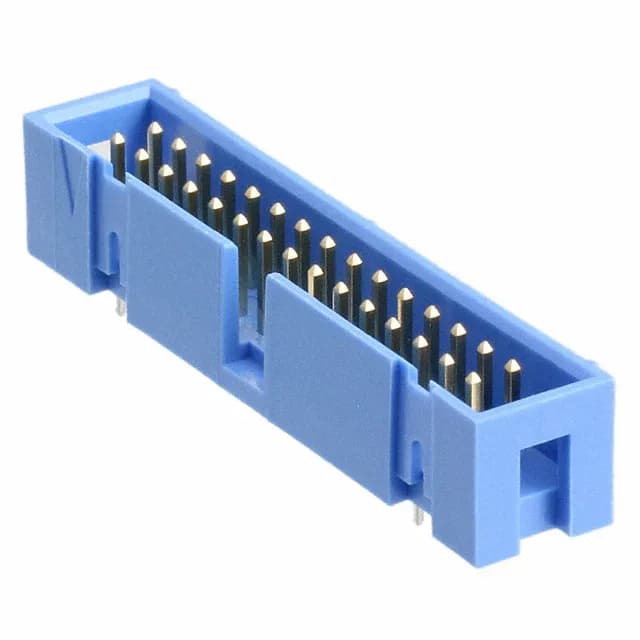

TE Connectivity AMP-Latch, Board to Cable/Wire, Header, 30 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Gold Mating Finish, 1A per Contact, 250VAC
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 30 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Rated 1A per contact at 250VAC, with a 30µinch gold mating finish. The header includes a keying slot (polarization feature) that prevents mismating with non-keyed or differently-keyed socket housings. The insulation is blue PBT, rated UL94 V-0 for flammability.
Mates with AMP-Latch socket connectors that accept 0.100" pitch ribbon cable.
