TE Connectivity AMP-Latch header, order code 3-1761603-7, 64 positions, dual row, 0.100" (2.54 mm) pitch, 1 A per contact, 250 VAC, gold-plated mating contacts, through-hole, solder termination, shrouded - 4 wall.

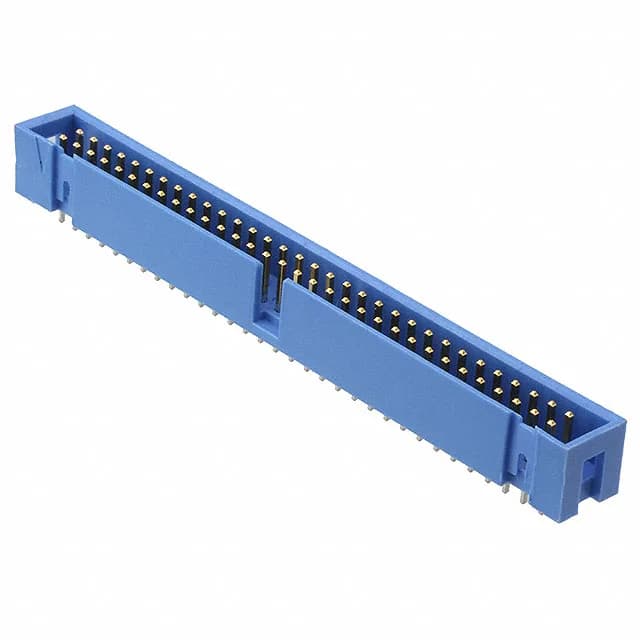

TE AMP-Latch 3-1761603-7 Header, 64 Pos, 2.54mm
MPN3-1761603-7
Active
TE Connectivity AMP-Latch header, order code 3-1761603-7, 64 positions, dual row, 0.100" (2.54 mm) pitch, 1 A per contact, 250 VAC, gold-plated mating contacts, through-hole, solder termination, shrouded - 4 wall.
$13.4800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 64 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 3-1761603-7 in the AMP-Latch series?
No pin-compatible alternative is listed for this exact 64-position, dual-row, 0.100" pitch shrouded header. The same-series siblings differ in position count only — the board footprint and pitch are shared across the AMP-Latch line.
