AMP-Latch 34-Position Right-Angle Header

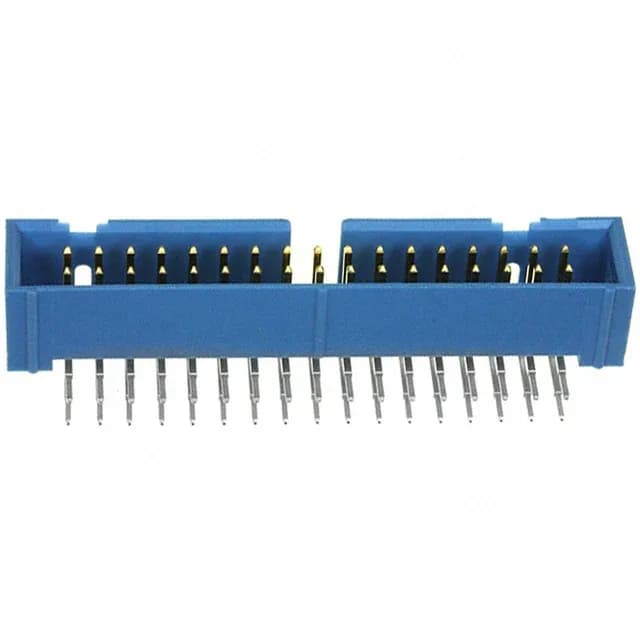

The 3-1761605-1: This is a 34-position, 0.100" (2.54mm) pitch header from the AMP-Latch series, designed for board-to-cable/wire connections. It's a shrouded, right-angle through-hole part with a push-pull fastening type and a keying slot to prevent mis-mating.
Pitch, Positions, and Mating Half
With 34 positions across two rows at 0.100" pitch and 0.100" row spacing, this header matches standard 0.100" IDC ribbon cable and the matching AMP-Latch receptacle. The gold mating finish at 30.0 µin (0.76µm) supports repeated mating cycles typical of field-serviceable cable assemblies, while the tin-plated posts (100.0 µin) are solder-friendly for through-hole wave or hand soldering.
