TE Connectivity AMP Connectors 3-1761605-5 — Pin Headers

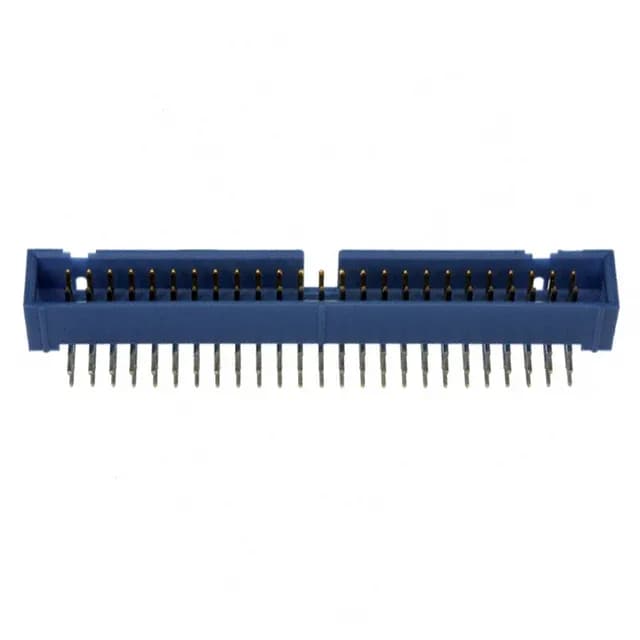

3-1761605-5 TE Connectivity AMP-Latch Header, 50-Pos, 2.54mm

MPN3-1761605-5
Active

TE Connectivity AMP-Latch, Board to Cable/Wire Header, 50 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Gold Mating Contact, Shrouded - 4 Wall, Keying Slot, Bulk

$12.2000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 3-1761605-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

3-1761605-5 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.350\" (8.89mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

3-1761605-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions50
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

50-position right-angle header for AMP-Latch IDC terminations

The 3-1761605-5 is a 50-position, 0.100" (2.54mm) pitch header from the AMP-Latch series, designed to mate with standard IDC ribbon cable connectors. It is a through-hole, right-angle mount — the pins sit perpendicular to the board edge, keeping the cable run parallel to the PCB plane. The four-wall shrouding and keying slot prevent mis-mating and protect the pins during handling.

Current and temperature envelope for signal-duty use

The blue color distinguishes it from other AMP-Latch pin counts on the same board.
