Active 34-Position AMP-Latch Header for IDC Cable Assemblies

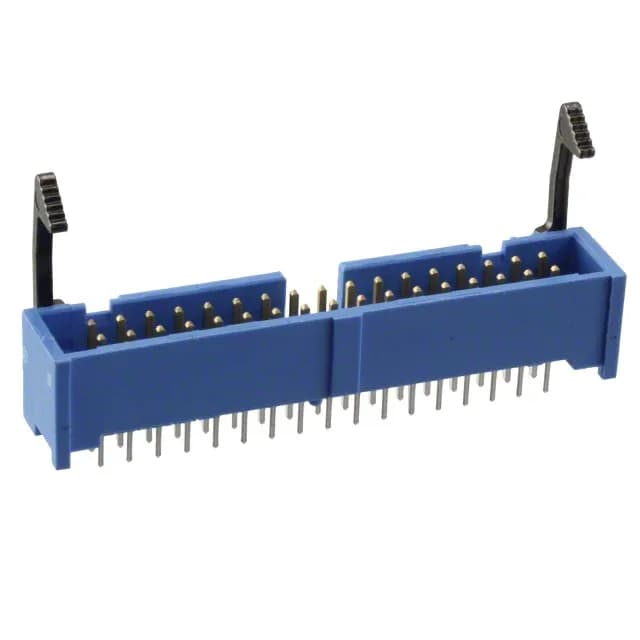

The 3-1761606-1 is an active-production TE Connectivity AMP-Latch header, 34 positions in a dual-row arrangement at 0.100-inch (2.54 mm) pitch and row spacing, designed to mate with standard 34-conductor IDC ribbon cable sockets.
Key Specs: Pitch, Current, and Mating Retention
Each of the 34 phosphor bronze contacts is rated at 1 A per contact at 250 VAC, with gold or gold-palladium plating on the mating surface (30.0 µin thickness) and tin on the solder posts (100.0 µin thickness). The header uses latch lock/eject hooks (long style) for positive retention and easy disengagement from the mating receptacle, a feature that reduces the risk of accidental unmating under vibration.
