TE Connectivity AMP-Latch header, order code 3-1761606-3, 40 positions, dual row, 2.54 mm pitch, 1 A per contact, 250 VAC, gold or gold-palladium mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.404\" (10.26mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |

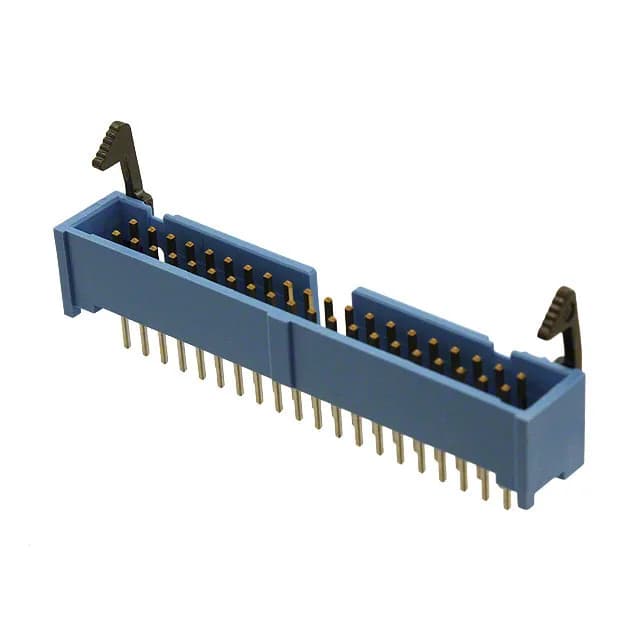

The 3-1761606-3 is the 40-circuit member of TE Connectivity's AMP-Latch shrouded header line, a board-to-cable/wire interconnect with latch lock/eject hooks.
The 4-wall shrouded housing with keying slot and latch lock/eject hooks protects the 40 male square pins and prevents mis-mating — the latch locks the mating half in place under vibration.
