TE Connectivity AMP Connectors 3-1761606-5 — Pin Headers

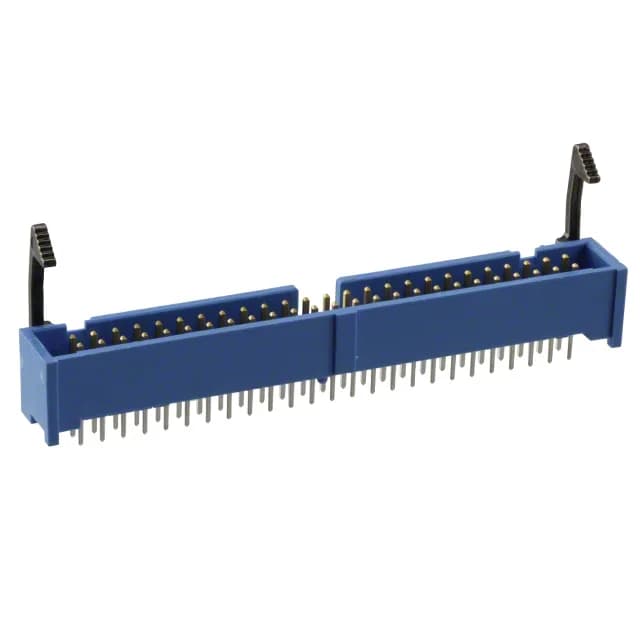

3-1761606-5 TE Connectivity AMP-Latch Header, 50 Pos, 2.54mm

MPN3-1761606-5
Active

TE Connectivity AMP-Latch, Header, 50 Positions, 2.54mm Pitch, Through Hole, Solder, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Long, 1A per Contact, 250VAC, -65°C ~ 105°C, Blue Insulation, UL94 V-0

$12.5500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 3-1761606-5 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-1761606-5 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.404\" (10.26mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

3-1761606-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions50
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.237\" (6.02mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 3-1761606-5 is a 50-position, 2-row vertical pin header from the TE Connectivity AMP-Latch series, designed to mate with a standard 50-position IDC ribbon-cable socket. The shrouded 4-wall housing with long latch lock/eject hooks guides the cable-side socket into alignment and locks it in place, preventing accidental disconnection in equipment that sees routine access or moderate vibration.

Sizing the current load — signal duty only

The mating contact finish is gold or gold-palladium at 30.0µin thickness, with a tin post finish at 100.0µin.

Frequently asked questions

Is the 3-1761606-5 a male or female header?

It is a male pin header — the contacts are square male pins that mate with a female IDC socket. The connector type is Header, with Male Pin contact type.

What is the pitch of the 3-1761606-5?

The mating pitch is 0.100" (2.54mm), with the same 0.100" row spacing between the two rows. This is the standard AMP-Latch pitch for 50-position ribbon-cable assemblies.

What is the closest functional equivalent to 3-1761606-5?

The peer MPN 1-1871673-2 is a similar AMP-Latch header, but it is a different base product number — verify the position count, pitch, and eject hook style against your BOM before substituting. The 3-1761606-5 is the direct 50-position, long-eject-hook variant.
