TE Connectivity AMP Connectors 3-1761607-1 — Pin Headers, Sockets & Housings

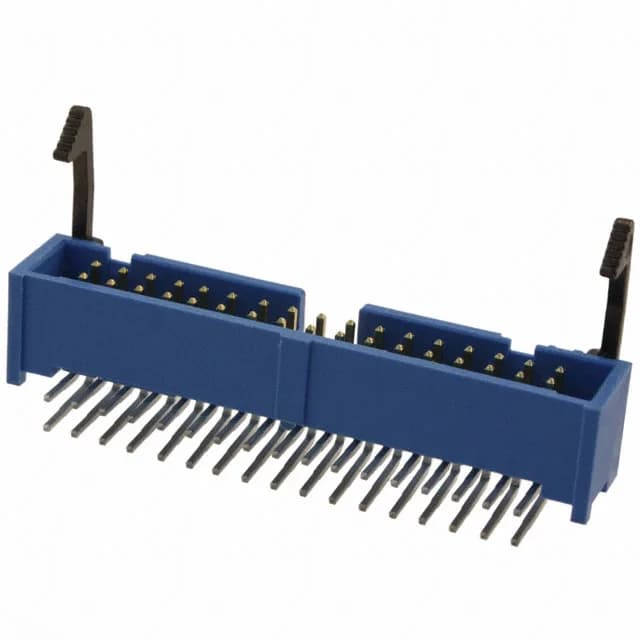

3-1761607-1 TE Connectivity AMP-Latch Header, 34 Pos

MPN3-1761607-1
Active

TE Connectivity AMP-Latch shrouded header, 34 circuits, 0.100" (2.54mm) pitch, right-angle through-hole, male pin, gold-plated mating contacts, latch lock/eject hooks, active production.

$10.5000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-1761607-1 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.362\" (9.20mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

3-1761607-1 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions34
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.237\" (6.02mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Cable Signal Routing with Latch Lock Retention

The 3-1761607-1: The long eject hooks also assist in breaking the friction fit when unplugging a dense 34-circuit cable assembly.

Contact Plating and Current Rating for Signal Duty

The tin-plated solder tails (100.0 µinch post finish) are compatible with standard wave-solder processes.

Through-Hole Mounting and Board Fit

The right-angle through-hole termination requires a drilled PCB with plated holes. Insulation height of 0.362" (9.20mm) above the board surface — factor this into component keep-out zones on adjacent board areas.

Frequently asked questions

Is 3-1761607-1 RoHS compliant?

The contact finish options include gold or gold-palladium on the mating side and tin on the solder tails — both are RoHS-compliant materials. The PBT housing is also RoHS-compatible.
