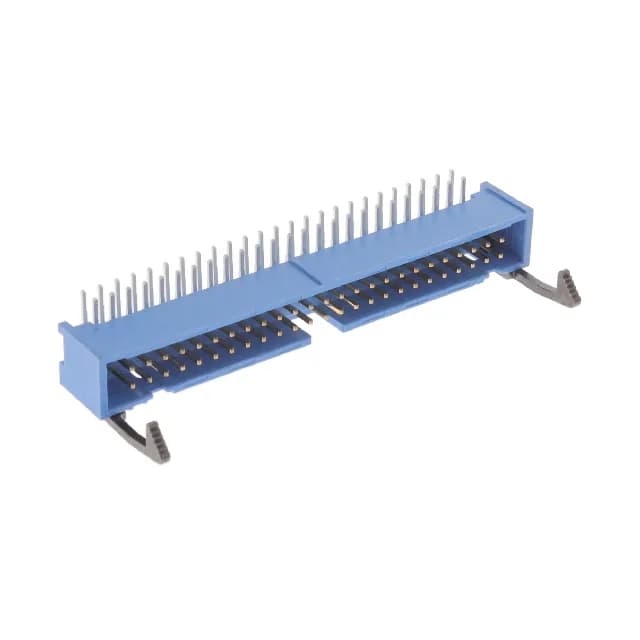

TE Connectivity AMP-Latch header, 3-1761607-5, 50 positions, 2.54mm pitch, right-angle through-hole, shrouded 4-wall, latch lock/eject hooks, gold-plated mating contacts, rated 1A per contact, 250VAC, -65°C to 105°C
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.362\" (9.20mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 3-1761607-5: This is a 50-position, dual-row, right-angle through-hole header from the TE AMP-Latch series, on 0.100" (2.54mm) pitch. Latch lock/eject hooks on the long side secure the pair against vibration and provide a positive pull-to-release action.
The tin-plated solder tails (100.0µin) are compatible with standard lead-free wave solder processes.
Confirm the receptacle's keying slot alignment with the header's keying slot feature.
Yes, it is ROHS3 compliant.
