TE Connectivity AMP Connectors 3-1761608-1 — Pin Headers

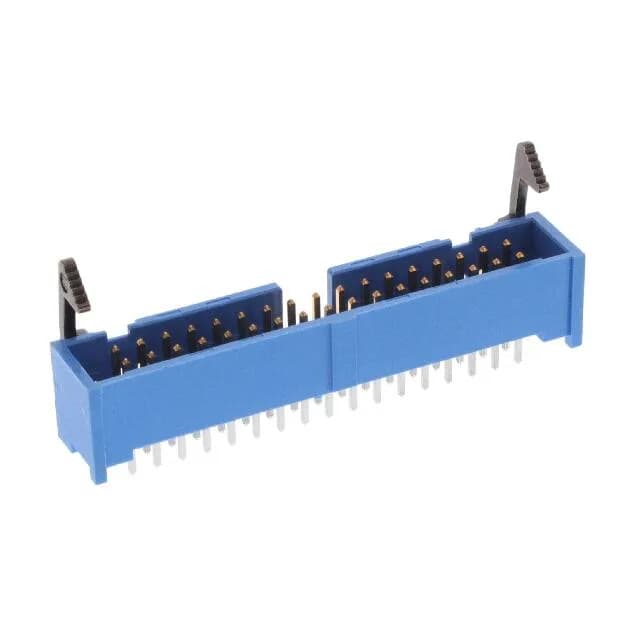

3-1761608-1 TE Connectivity AMP-Latch Header, 34 Pos, 2.54mm

MPN3-1761608-1
Active

TE Connectivity AMP-Latch series, board-to-cable/wire header, 34 positions, 2 rows, 0.100" (2.54mm) pitch, vertical through-hole, shrouded with latch lock/eject hooks and keying slot, 1A per contact, gold-plated mating surface.

$11.0500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 3-1761608-1 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

3-1761608-1 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Short
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C~105°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.404\" (10.26mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

3-1761608-1 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions34
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.237\" (6.02mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board Fit and Contact Specs

The 3-1761608-1: The 0.404" (10.26mm) insulation height and 0.102" (2.60mm) post length set the board standoff and solder tail depth for a through-hole wave-solder process. The post gets 100 µinch tin, standard for solder-joint reliability. Voltage rating is 250VAC, and the PBT housing carries UL94 V-0 flame rating.

Mating and Locking Details

This header mates with AMP-Latch IDC socket connectors — the latch lock/eject hooks and keying slot prevent accidental unmating and guide correct orientation.

Frequently asked questions

What is the mating connector for 3-1761608-1?

This header mates with AMP-Latch IDC socket connectors — typically a 34-position, 2-row receptacle with 0.100" (2.54mm) pitch. The latch lock/eject hooks and keying slot ensure correct orientation and retention.

Is 3-1761608-1 RoHS compliant?

Yes, RoHS compliant per TE Connectivity's current declaration.

Where can I buy 3-1761608-1?

Availability and current pricing confirmed at quote time.
