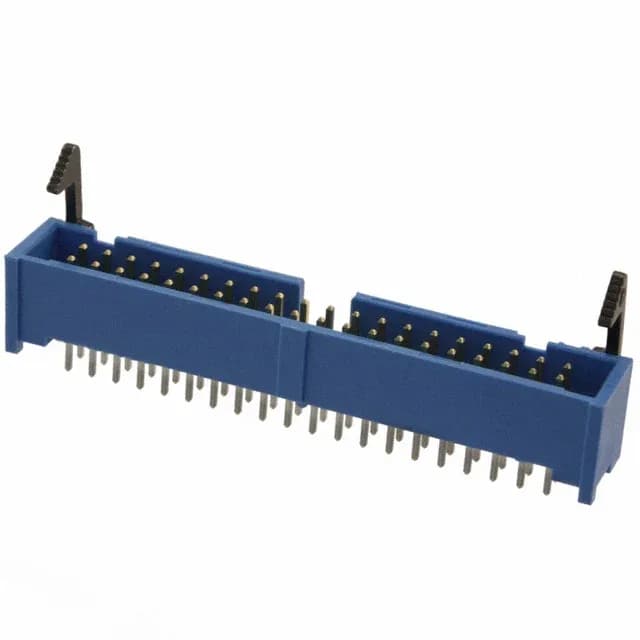

TE Connectivity AMP-Latch series, 3-1761608-3, Board to Cable/Wire header, 40 positions, 2 rows, 0.100" (2.54mm) pitch, shrouded - 4 wall, latch lock/eject hooks, through hole, solder termination, 1A per contact, 250VAC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.404\" (10.26mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Short latch lock/eject hooks on both ends secure the mated pair — the lock engages audibly and prevents accidental disconnection under cable strain.
The style is Board to Cable/Wire, meaning this header is designed to mate with a cable-mounted receptacle, not another board-mounted connector. Typical mating halves are AMP-Latch IDC receptacles or similar 0.100" pitch ribbon-cable connectors.
Yes — fully shrouded 4-wall housing with short latch lock/eject hooks on both ends.
Yes, the listed style is Board to Cable/Wire, designed to mate with a cable-mounted receptacle.
