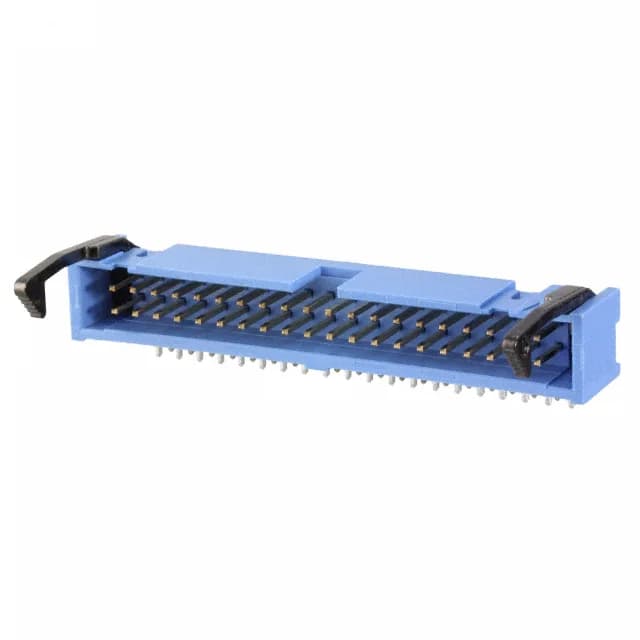

TE Connectivity AMP-Latch header, order code 3-1761712-3, 40 positions, dual row, 0.100" (2.54mm) pitch, shrouded - 4 wall, through-hole right-angle, solder termination, gold or gold-palladium mating contacts, latch lock/eject hooks.
3-1761712-3 TE AMP-Latch Header, 40 Pos, 2.54mm, Obsolete
MPN3-1761712-3
Obsolete
TE Connectivity AMP-Latch header, order code 3-1761712-3, 40 positions, dual row, 0.100" (2.54mm) pitch, shrouded - 4 wall, through-hole right-angle, solder termination, gold or gold-palladium mating contacts, latch lock/eject hooks.
$2.6700Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.362\" (9.20mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.162\" (4.11mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
