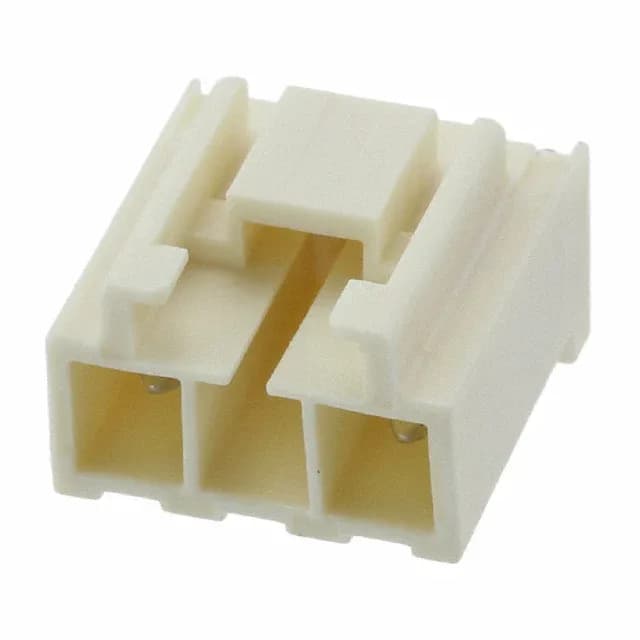

TE Connectivity AMP Universal Power header, 3 positions (2 loaded), 3.96mm pitch, through-hole, shrouded 4-wall, locking ramp, tin-plated contacts, UL94 V-0, active production.
| Parameter | Value |
|---|---|
| Series | Universal Power |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.551\" (14.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
Through-hole mounting with kinked pins (0.150" post length) provides a strong solder joint that resists shear from cable strain. The kinked pin adds retention during wave soldering — the pin straightens slightly as it enters the plated through-hole, creating an interference fit that holds the header in place before solder solidifies.
This prevents accidental disconnect under vibration.
