TE Connectivity AMP Connectors 3-176976-9 — Pin Headers

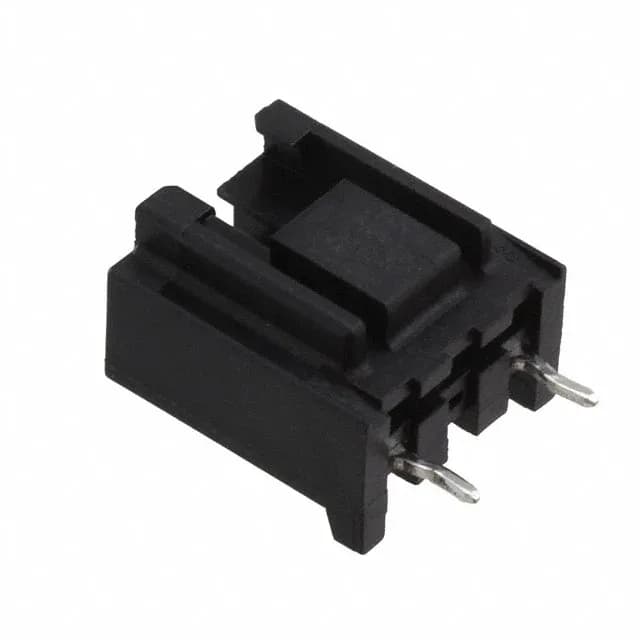

3-176976-9 TE Universal Power Header, 3 Pos, 3.96mm

MPN3-176976-9
Active

TE Connectivity AMP Universal Power series, header, vertical through-hole, 3 positions (2 loaded), 0.156" (3.96mm) pitch, shrouded 4-wall, locking ramp, tin-plated brass contacts, black PA66 housing, UL94 V-0.

$0.4300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesUniversal Power
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-176976-9 key specifications
ParameterValue
SeriesUniversal Power
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Current ratingVaries by Wire Gauge
Operating temperature-30°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.551\" (14.00mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Material flammability ratingUL94 V-0

All specifications

3-176976-9 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows1
Pitch0.156\" (3.96mm)
Positions3
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingTin

Product details

The 3-176976-9 is a 3-position vertical header from TE's Universal Power series, but only 2 positions are loaded with contacts — the third cavity is empty. The 0.156" (3.96mm) pitch and shrouded 4-wall design mate with standard Universal Power female housings carrying 3.96mm crimp terminals.

Through-hole termination and tin plating

For a fixed harness that mates once or twice in the field, tin is adequate. The header is rated for an operating temperature range of -30°C to 105°C, and the glass-filled PA66 housing carries a UL94 V-0 flammability rating. RoHS3 compliant per TE's current material declaration.

Frequently asked questions

Does 3-176976-9 have a locking feature?

Yes, the header has a locking ramp on the shroud that engages with the mating female housing for positive retention under vibration.

Is 3-176976-9 RoHS compliant?

Yes, TE lists it as ROHS3 Compliant.

What is the replacement for 3-176976-9?

TE has not published a direct replacement or successor for this order code. The base product number is 176976; check with TE for any future cross-reference.
