TE Connectivity AMP Connectors 3-1775333-2 — FFC / FPC & Ribbon Connectors

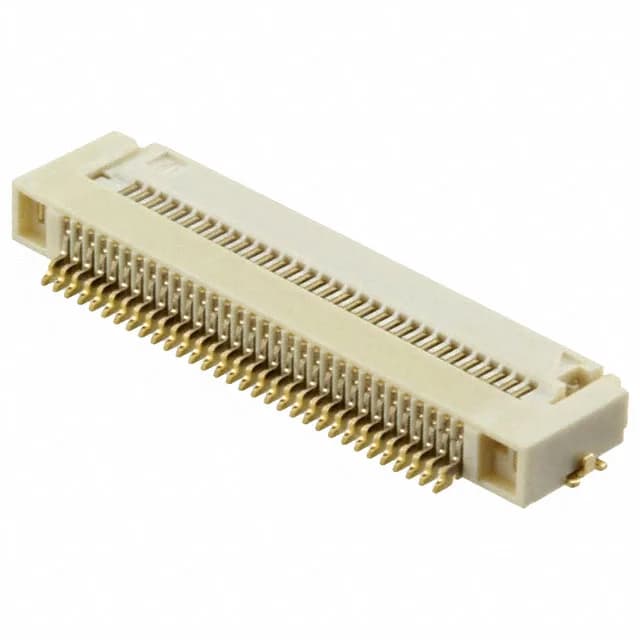

TE 3-1775333-2 FPC Connector, 32 Pos, 0.50mm, ZIF, Obsolete

MPN3-1775333-2
Obsolete

TE Connectivity AMP Connectors FPC connector, order code 3-1775333-2, 32 positions, 0.020" (0.50mm) pitch, 0.5A, 250V, gold-plated contacts, surface-mount right-angle, solder termination, ZIF actuation.

$0.7190Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

3-1775333-2 key specifications
ParameterValue
MountingSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating250V
Current rating0.5A
Operating temperature-20°C ~ 85°C
Housing colorNatural
Actuator colorNatural
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP)
Actuator materialLiquid Crystal Polymer (LCP)

All specifications

3-1775333-2 additional specifications
ParameterValue
Height above board0.081\" (2.05mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Contact finishGold
Locking featureFlip Lock
FFC, FCB thickness0.30mm
Positions32
Contact finish thickness50.0µin (1.27µm)

Product details

32-position ZIF FPC connector

The 3-1775333-2 is a 32-position FPC connector from TE Connectivity AMP Connectors with a 0.020" (0.50mm) pitch, ZIF actuation, and flip-lock retention. Gold-plated contacts rated 0.5A at 250V, with a bottom-contact configuration accepting 0.30mm FPC. The LCP housing carries a UL94 V-0 flammability rating and operates from -20°C to 85°C.

Obsolete — sourcing guidance

The 3-1775333-2 is listed as Obsolete by TE Connectivity AMP Connectors. Available through independent surplus channels; quantities are lot-specific and confirmed at RFQ. A board spin is required for any functional replacement.

Frequently asked questions

What is the pitch of 3-1775333-2?

The pitch is 0.020" (0.50mm).

What package does 3-1775333-2 ship in?

Tape & Reel (TR).
