TE Connectivity AMP Connectors 3-1775333-3 — FFC / FPC & Ribbon Connectors

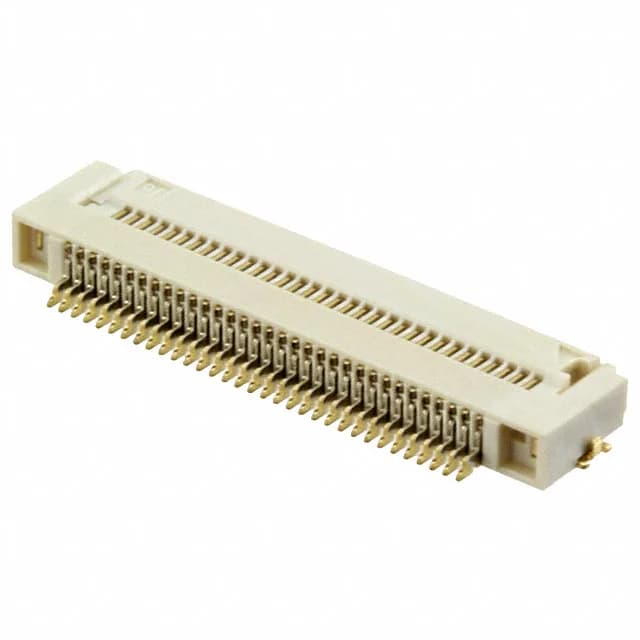

TE 3-1775333-3 FPC Connector, 33 Pos, 0.50mm, ZIF

MPN3-1775333-3
Obsolete

TE Connectivity AMP Connectors FPC connector, order code 3-1775333-3, 33 positions, 0.020" (0.50mm) pitch, 0.5A, 250V, gold-plated contacts, bottom contact, surface-mount right-angle, solder termination, ZIF flip-lock.

$1.4400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

3-1775333-3 key specifications
ParameterValue
MountingSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating250V
Current rating0.5A
Operating temperature-20°C ~ 85°C
Housing colorNatural
Actuator colorNatural
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP)
Actuator materialLiquid Crystal Polymer (LCP)

All specifications

3-1775333-3 additional specifications
ParameterValue
Height above board0.081\" (2.05mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Contact finishGold
Locking featureFlip Lock
FFC, FCB thickness0.30mm
Positions33
Contact finish thickness50.0µin (1.27µm)

Product details

33-position FPC socket, 0.50 mm pitch, bottom contact

The 3-1775333-3 is a 33-circuit FPC socket from TE Connectivity's 1775333 series, accepting 0.30 mm-thick flat flex cable with a bottom-contact interface. Rated 0.5 A per contact at 250 V, the gold-plated phosphor bronze contacts carry 50.0 µin (1.27 µm) of gold on the mating surface. The ZIF flip-lock actuator secures the cable without insertion force.

Obsolete — last-time-buy sourcing

TE Connectivity has marked the 3-1775333-3 as Obsolete. No official successor or pin-compatible replacement is listed under the 1775333 base number. Sourced per RFQ against remaining distributor or surplus inventory.

Frequently asked questions

What is the pitch and contact configuration of the 3-1775333-3?

The pitch is 0.020" (0.50 mm). The connector is a bottom-contact FPC socket — the flex cable contacts the lower row of terminals, so a cable folded for top-contact use will not mate correctly.
