TE Connectivity AMP Connectors 3-1775801-3
MPN3-1775801-3
Active

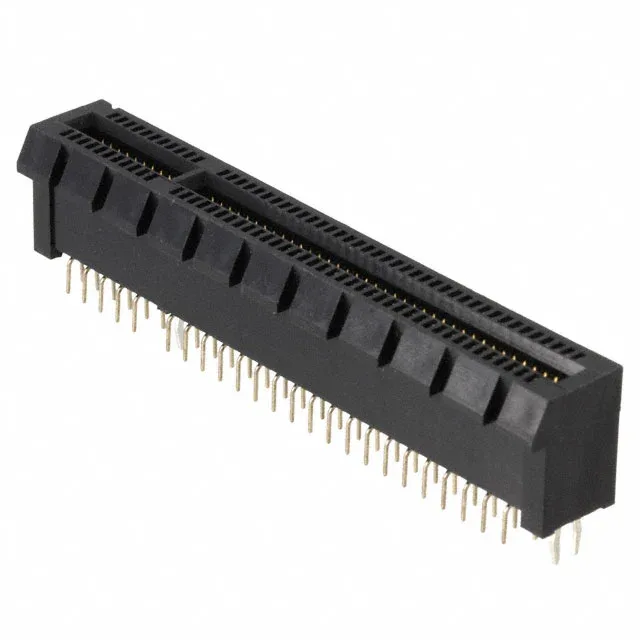

CONN PCI EXP FMALE 98POS 0.039
$4.47Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Card type | PCI Express™ |
| Mounting | Through Hole |
| Operating temperature | -40°C ~ 85°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Material - insulation | Polyamide (PA46), Nylon 4/6 |
| Pitch | 0.039\" (1.00mm) |
| Gender | Female |
| Package | Tray |
| Features | Board Lock, Locking Ramp |
| Read out | Dual |
| Termination | Solder, Staggered |
| Card thickness | 0.062\" (1.57mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 98 |
| Contact finish thickness | 30.0µin (0.76µm) |
