TE Connectivity AMP Connectors 3-178139-2 — Pin Headers

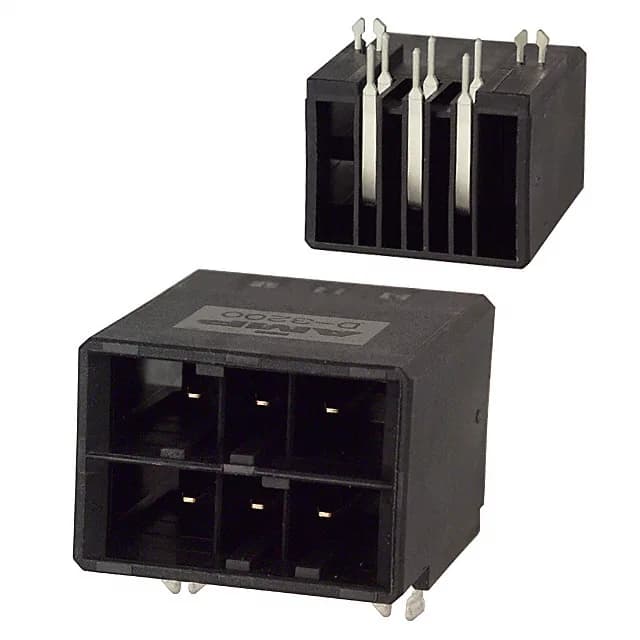

3-178139-2 TE Connectivity Dynamic D-3200 Header, 6 Pos

MPN3-178139-2
Active

TE Connectivity AMP Connectors, Dynamic D-3200 series, 6-position (2-row) right-angle through-hole header, 5.08 mm pitch, shrouded 4-wall, gold mating finish, detent lock, UL94 V-0, active production.

$4.6000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDynamic D-3200
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-178139-2 key specifications
ParameterValue
SeriesDynamic D-3200
TypeTab
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating600V
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.668\" (16.97mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

3-178139-2 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows2
Pitch0.200\" (5.08mm)
Positions6
Row spacing - mating0.300\" (7.62mm)
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingGold
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The 3-178139-2 is a 6-position, 2-row right-angle through-hole header from TE's Dynamic D-3200 series. It mates with the matching Dynamic D-3200 receptacle to form a board-to-board or cable-to-board interconnect rated for 600 V.

Pitch, positions, and plating that drive the fit

At 5.08 mm pitch, the per-contact current ceiling is set by the contact geometry and the 15 µinch gold-over-nickel mating finish. The 6 positions, all loaded, with 2 rows at 0.300" (7.62 mm) row spacing, define the mating half search: any Dynamic D-3200 receptacle with 6 circuits and the same row pitch will fit.

Frequently asked questions

What is the mating connector for 3-178139-2?

The mating half is a Dynamic D-3200 series receptacle with 6 positions and 2 rows at 5.08 mm pitch. Look for the matching TE part number with the same circuit count and row spacing.

What is the pitch of 3-178139-2?

The mating pitch is 0.200" (5.08 mm). The row spacing is 0.300" (7.62 mm).

Is 3-178139-2 RoHS compliant?

Yes, the 3-178139-2 is RoHS compliant per TE Connectivity's certification.
