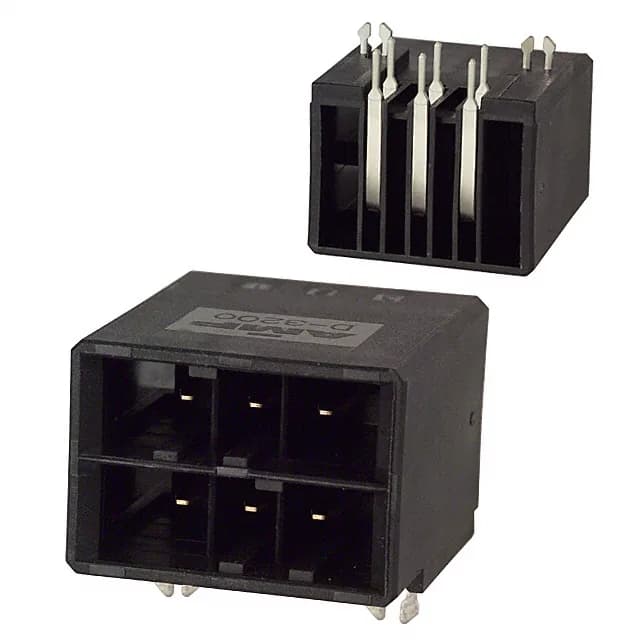

TE Connectivity AMP Connectors Dynamic D-3200 header, order code 3-178139-3, 6 positions, dual row, 5.08 mm pitch, 600 V, gold-plated mating contacts, through-hole right-angle, solder termination.
TE Dynamic D-3200 3-178139-3 Header, 6-Pos 5.08mm
MPN3-178139-3
Active
TE Connectivity AMP Connectors Dynamic D-3200 header, order code 3-178139-3, 6 positions, dual row, 5.08 mm pitch, 600 V, gold-plated mating contacts, through-hole right-angle, solder termination.
$3.5511Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.668\" (16.97mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 6 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is 3-178139-3's listed style?
The style is Board to Board or Cable, per the series specification.
What compliance documentation does TE provide for 3-178139-3?
RoHS and REACH compliance documentation is available from the manufacturer upon request.
