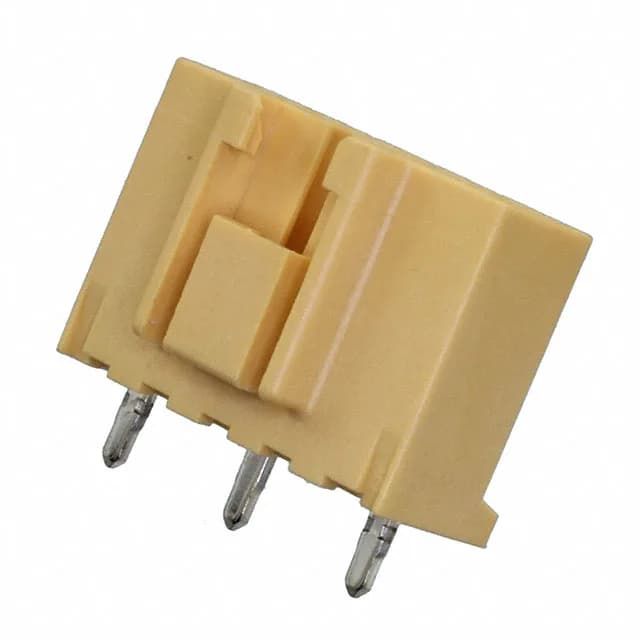

TE Connectivity AMP Universal Power header, order code 3-178488-4, 3 positions, single row, 7.92 mm pitch, shrouded - 4 wall, locking ramp, tin-plated mating contacts, through-hole, kinked pin solder termination.
| Parameter | Value |
|---|---|
| Series | Universal Power |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Yellow |
| Insulation height | 0.551\" (14.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.312\" (7.92mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
The 3-178488-4 is the 3-circuit member of TE's Universal Power header line, a shrouded single-row board-to-wire header with a locking ramp for positive retention. Tin-plated mating contacts on a 7.92 mm pitch, through-hole termination with a kinked solder tail for retention during wave soldering.
RoHS and REACH compliance documentation is available from TE Connectivity upon request.
