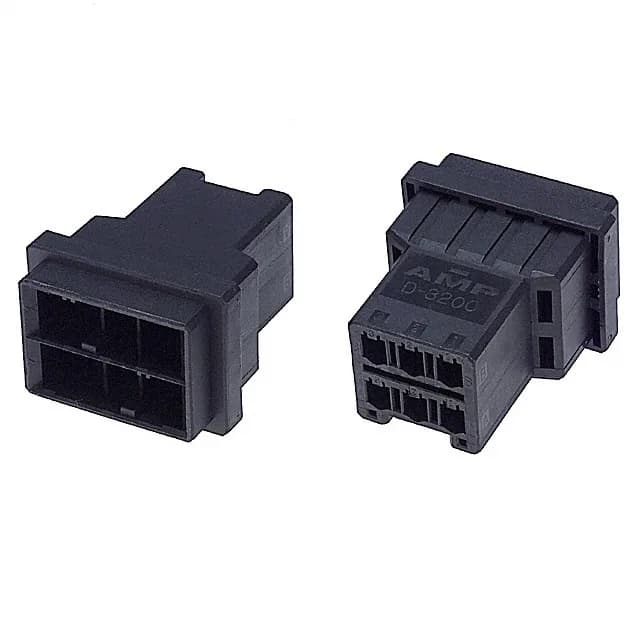

TE Connectivity Dynamic D-3200, Plug Housing, 6 Positions, 2 Row, 0.200" (5.08mm) Pitch, Free Hanging (In-Line), Crimp, Black, Polarizing Key, Contacts Not Included.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Polarizing Key |
| Row spacing | 0.300\" (7.62mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 6 |
A polarizing key prevents mis-mating with the matching receptacle housing, a standard safeguard in the Dynamic series.
The 6 circuits at 5.08 mm pitch are the headline numbers. The polarizing key on the plug aligns with the corresponding slot on the receptacle.
You'll need to order the male crimp terminals separately.
No — contacts are not included. The housing ships as an empty shell; you must order the male crimp terminals separately for the Dynamic D-3200 series.
The mating receptacle is the TE 1-2069882-6 — a 6-position, 5.08 mm pitch, female socket housing in the same Dynamic D-3200 series. Both are free-hanging, crimp-termination housings.
Yes, it is RoHS compliant.
