2.00mm Pitch, 5-Position Shrouded Header for Board-to-Wire
Mates with a Grace Inertia (GIC) series receptacle housing that accepts crimp terminals — confirm the mating half part number before committing the BOM.

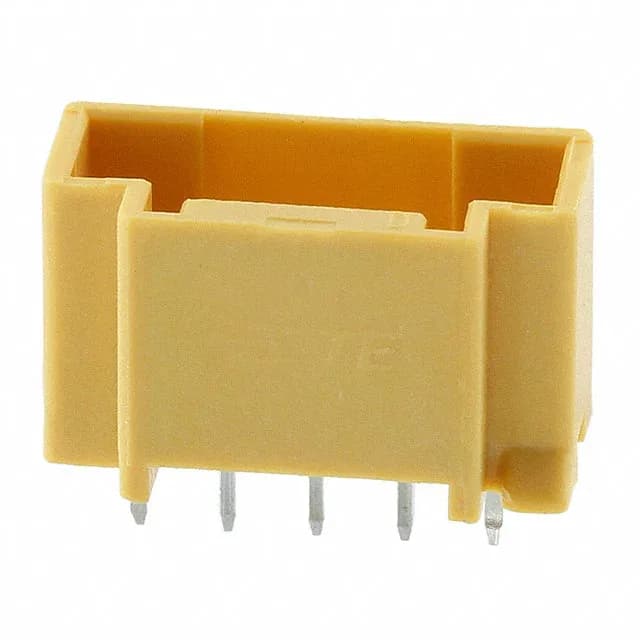

3-1971032-5 TE Connectivity 5-Pin 2mm Header
MPN3-1971032-5
Active
TE Connectivity AMP Connectors, Grace Inertia GIC series, 5-position single-row shrouded header, 2.00mm pitch, through-hole solder termination, board lock, latch holder fastening, UL94 V-0 yellow PA66 housing.
$0.6900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesGrace Inertia, GIC
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Grace Inertia, GIC |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 50V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C~105°C |
| Contact material | Brass |
| Insulation color | Yellow |
| Insulation height | 0.256\" (6.50mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What is the mating receptacle for 3-1971032-5?
Confirm the mating half part number against your harness design before ordering.
