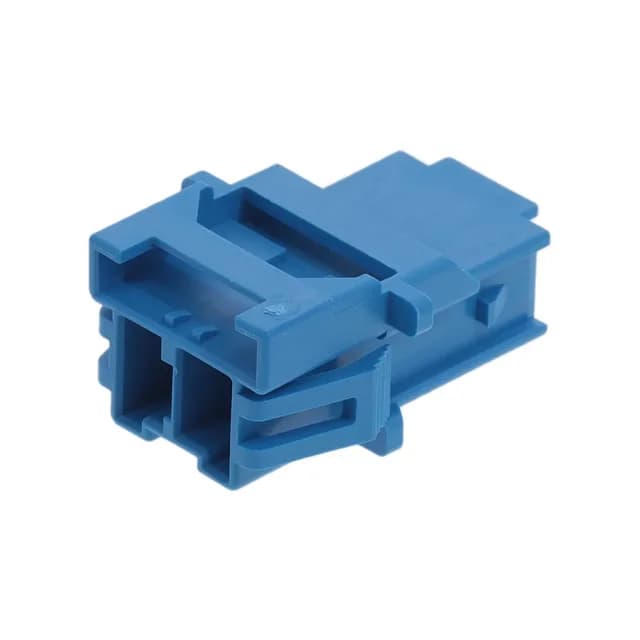

Panel-Mount Power Receptacle Housing for Harness Builds
Glow wire compliance (per IEC 60335-1) makes it a fit for appliance and HVAC applications where the connector sits near heating elements. The blue color aids visual identification in multi-connector harness assemblies.
Mounting and Mating Details
This receptacle snaps into a panel cutout — no tools required for installation. The latch lock on the mating face holds the plug in place under vibration, which is the typical failure mode for unlatched power connectors in mobile equipment. The single-row, 2-position layout keeps the harness narrow, useful for tight routing inside enclosures. Termination is crimp-style, so the wire is attached to the terminal before insertion into the housing — standard practice for field-serviceable harnesses.
No official second-source or cross-reference is listed. The 1-1703532-1 is a different series (9.50 mm pitch, sealed plug) and is not a functional substitute.
