TE Connectivity AMP Connectors 3-1971775-3 — Connector Housings

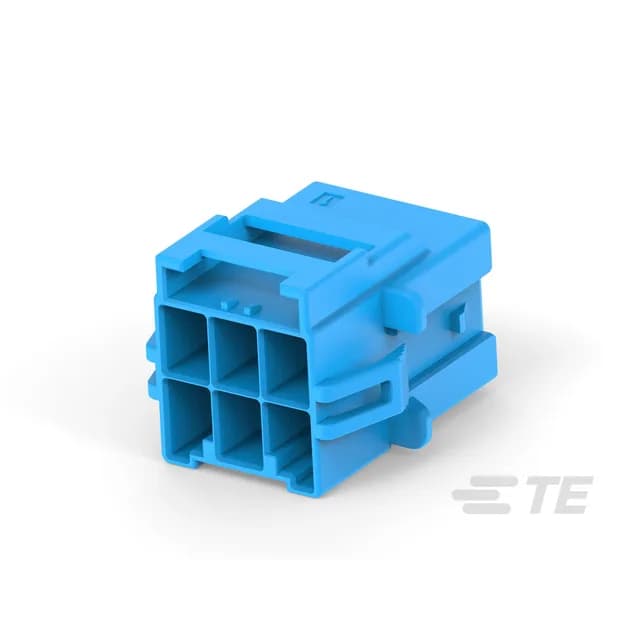

TE 3-1971775-3 Power Triple Lock Receptacle Housing, 6 Pos

MPN3-1971775-3
Active

TE Connectivity Power Triple Lock, Standard receptacle housing, 3-1971775-3, 6 positions, 2 rows, 6.00 mm pitch, panel mount, crimp termination, blue, -55°C to 105°C.

$0.7400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPower Triple Lock, Standard
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-1971775-3 specifications
ParameterValue
SeriesPower Triple Lock, Standard
TypeTab
MountingPanel Mount
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-55°C ~ 105°C
ColorBlue
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.236\" (6.00mm)
PackageBulk
FeaturesCap (Cover)
Row spacing0.319\" (8.10mm)
Rows2
Contact terminationCrimp
Positions6

Product details

The TE 3-1971775-3 is a 6-position, 2-row receptacle housing from the Power Triple Lock, Standard series, on a 6.00 mm pitch. It's a panel-mount shell that accepts crimp tab contacts — the housing itself is the wire-side interface for a sealed, latch-locked power interconnect. The blue colour and cap (cover) feature are visual and mechanical identifiers for this specific variant.

Critical Detail: Contacts Are Sold Separately

This listing is for the housing only — the crimp tab contacts are not included. The housing accepts tab-type contacts terminated to the wire via a standard crimp tool, then inserted into the cavity until the latch seats. Without the contacts, this is just an empty shell; make sure your BOM line accounts for both the housing and the per-position terminals.

The glass-filled PBT insulation holds up to the heat and resists creep under the latch load. If your application lives above 105°C ambient, you'll need a different material grade.

The cap (cover) on this housing protects the contact cavities when unmated.

Frequently asked questions

What contacts are used with TE 3-1971775-3?

The 3-1971775-3 housing accepts TE Power Triple Lock crimp tab contacts, which are ordered separately. The exact terminal part number depends on wire gauge and plating preference — check the TE application tooling guide for the correct contact for your wire size.

What is the mating plug for 3-1971775-3?

The mating half is a TE Power Triple Lock plug header, also 6-position, 6.00 mm pitch, with a latch holder fastening system. The plug can be panel-mount or free-hanging; confirm the orientation and mounting style from the TE series catalog.

Is 3-1971775-3 RoHS compliant?

Yes, the 3-1971775-3 is RoHS compliant.
