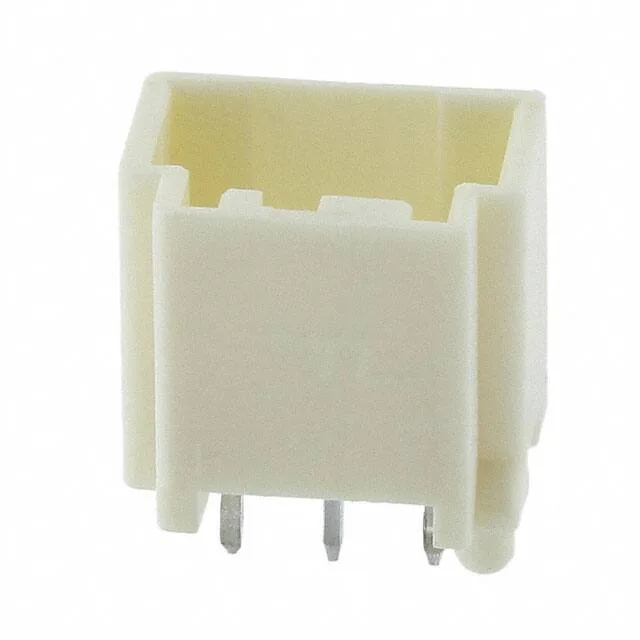

TE Connectivity AMP Connectors 3-1971800-1
MPN3-1971800-1
Active
CONN HEADER VERT 3POS 2.5MM
$0.29Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesGrace Inertia, GIC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Grace Inertia, GIC |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 50V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.346\" (8.80mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
