TE Connectivity AMP Connectors 3-1971875-7 — Connector Housings

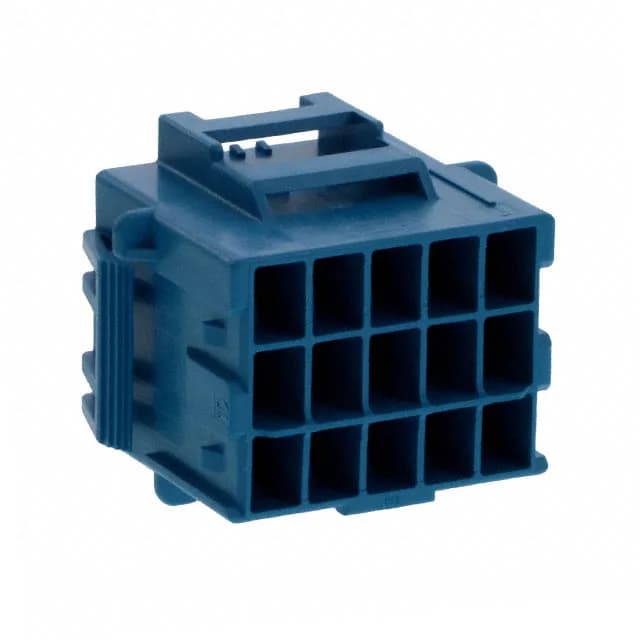

TE 3-1971875-7 Power Triple Lock Receptacle, 15 Pos, 6.00mm

MPN3-1971875-7
Active

TE Connectivity Power Triple Lock, High Temp receptacle housing, 15 positions, 3 rows, 6.00mm pitch, 0.319" row spacing, panel mount snap-in, latch holder, crimp termination, PBT, blue, -55°C to 105°C, contacts not included.

$1.2600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPower Triple Lock, High Temp
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-1971875-7 specifications
ParameterValue
SeriesPower Triple Lock, High Temp
TypeTab
MountingPanel Mount, Snap-In
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-55°C ~ 105°C
ColorBlue
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.236\" (6.00mm)
PackageBulk
Row spacing0.319\" (8.10mm)
Rows3
Contact terminationCrimp
Positions15

Product details

15-Position Power Triple Lock Receptacle Housing

It uses a 6.00 mm pitch across three rows with a 0.319" row spacing, giving it the contact density for a power-distribution harness without crowding the terminals. The housing is panel-mount with snap-in retention and a latch holder that locks the mating plug in place — the latch is the primary retention against vibration, not the panel fit.

The contact type is tab, which means the mating half uses a female socket terminal. The termination is crimp, so the wire is attached to the terminal before insertion. The blue colour of the housing is a visual key for the assembly line — it tells the operator which cavity configuration or wire gauge this housing accepts without reading the label.

The housing mounts to a panel with a snap-in feature — no screws or brackets. The latch holder on the connector body engages the mating plug and holds it mated. In a harness assembly, the panel cut-out must match the housing profile; the snap-in ears take the push force during mating and the latch takes the pull force during unmating. The 6.00 mm pitch and 0.319" row spacing leave enough room for the crimp terminals and the wire seals if the application uses a sealed variant.

There is no official second-source or cross-reference on file; the BOM line should reference this exact TE order code.

Frequently asked questions

Does 3-1971875-7 include contacts?

No — the listing notes Contacts Not Included. The housing accepts crimp tab terminals that are ordered separately.

Is 3-1971875-7 obsolete or still active?

Standard sourcing through distribution applies.

What is the row spacing of 3-1971875-7?

The row spacing is 0.319" (8.10 mm) across the three rows.

Where can I buy 3-1971875-7 available via RFQ confirmation?

Sourced per RFQ against your BOM quantity. Availability and pricing confirmed at quote time.
