TE Connectivity AMP Connectors 3-1971906-3 — Pin Headers

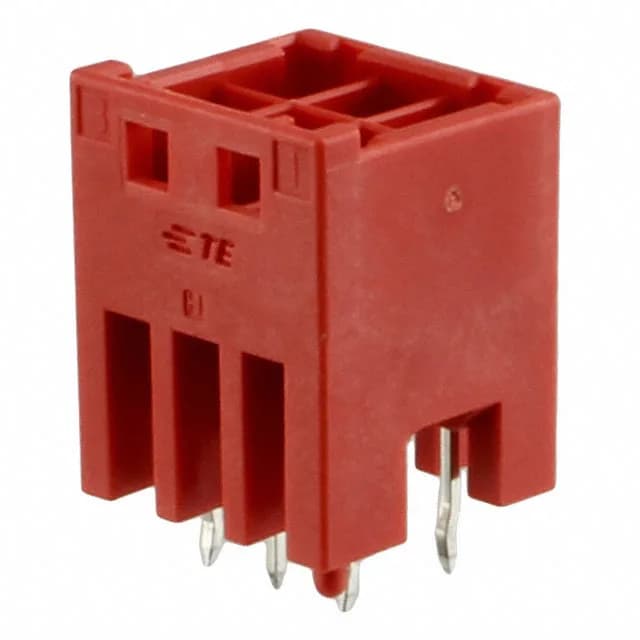

3-1971906-3 TE Connectivity Header 6 Pos 3.3mm Pitch

MPN3-1971906-3
Active

TE Connectivity AMP Connectors Grace Inertia GIC series, 3-1971906-3, 6-circuit shrouded header, 3.30mm pitch, through-hole solder, latch holder, tin-plated contacts, UL94 V-0.

$0.4300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesGrace Inertia, GIC
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-1971906-3 key specifications
ParameterValue
SeriesGrace Inertia, GIC
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-30°C~105°C
Contact materialBrass
Insulation colorRed
Insulation height0.561\" (14.25mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled

All specifications

3-1971906-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
ApplicationsGeneral Purpose, Industrial
Contact shapeSquare
Rows2
Pitch0.130\" (3.30mm)
Positions6
Row spacing - mating0.205\" (5.20mm)
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Overall contact length0.575\" (14.60mm)
Contact finish - matingTin

Product details

6-Position Header at 3.30mm Pitch

RoHS3 compliant. The base product number 1971906 covers the series variants; the full 3-1971906-3 suffix specifies the red insulation, 6-position, through-hole configuration.

Peer Comparison: 1-1871673-2

The closest functional alternative is 1-1871673-2 — a 4-position, right-angle, 2.50mm pitch header with a detent lock, also active. The 3-1971906-3 gives you two more circuits, a wider 3.30mm pitch, and a vertical orientation with latch holder. If your board layout needs a right-angle entry or a tighter pitch, the 1-1871673-2 is the cross-shop candidate.

Frequently asked questions

What mating receptacle works with 3-1971906-3?

This header mates with a Grace Inertia (GIC) series receptacle housing that accepts the corresponding crimp terminals. The 3.30mm pitch and 6-position count define the mating half — confirm the receptacle part number against the series catalog for the correct keying and wire size.
