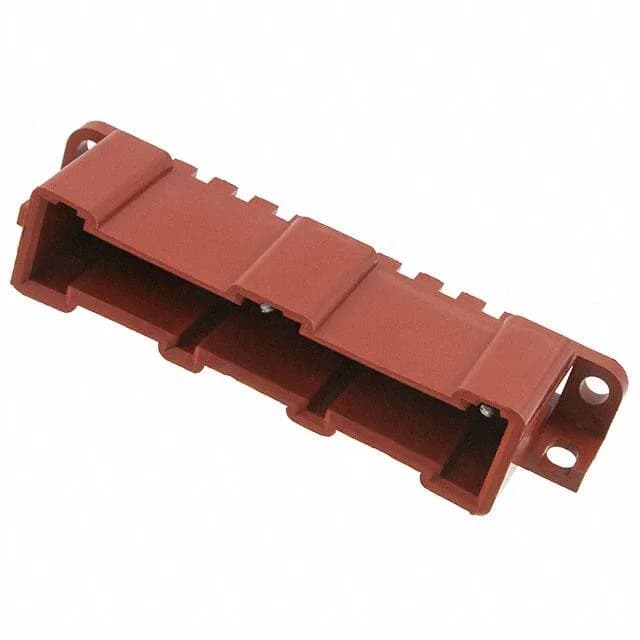

TE Metrimate 3-208403-2 Header, 10-Position, 5.08mm Pitch, 7.5A, 600V
MPN3-208403-2
Active
TE Connectivity, Metrimate series, 10-position 5.08mm pitch header, right-angle through-hole, 600V 7.5A, tin-plated circular male pins, 4-wall shrouded, mounting flange, latch holder, UL94 V-0 red nylon, -55 to 130°C.
$10.0547Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C~130°C |
| Contact material | Copper Alloy |
| Insulation color | Red |
| Insulation height | 0.550\" (13.97mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Tin |
Frequently asked questions
Where can I buy the 3-208403-2 and how do I get a price?
The 3-208403-2 is sourced and quoted to order against the BOM quantity through independent distribution — availability and current pricing are confirmed at quote time, not from a live stock figure.
What is the listed series for the 3-208403-2?
The 3-208403-2 is listed in the Metrimate series.
