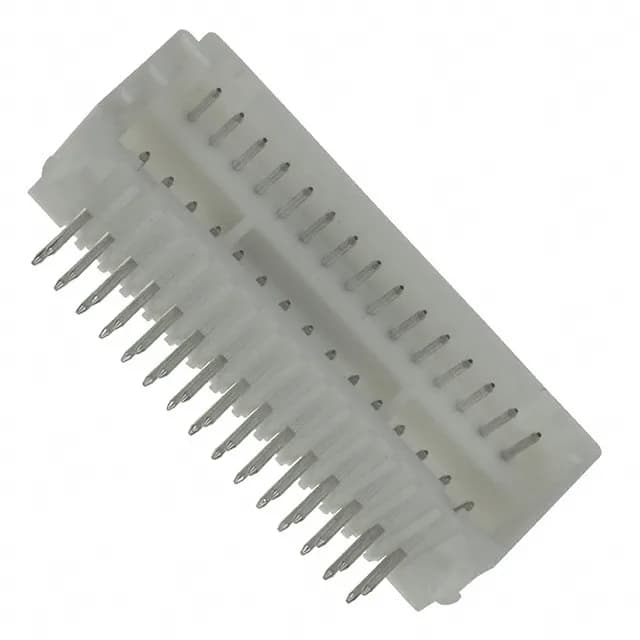

TE Connectivity AMP Connectors CT series header, order code 3-292138-0, 30 positions, dual row, 2.00 mm pitch, 125 VAC, tin-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125VAC |
| Current rating | Varies by Wire Gauge |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.437\" (11.10mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 30 |
| Row spacing - mating | 0.256\" (6.50mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.185\" (4.70mm) |
The 3-292138-0 is the 30-position member of TE's CT series board-to-wire header line, a shrouded 4-wall header with board lock for through-hole right-angle mounting. It carries tin-plated mating contacts rated 125 VAC and uses a detent lock for positive retention with the mating receptacle.
The 30 positions are arranged in dual rows with a 2.00 mm mating pitch and 6.50 mm row spacing, all positions loaded.
The housing material is polyamide (PA66) rated UL94 V-0. Contact TE Connectivity for specific RoHS/REACH documentation.
