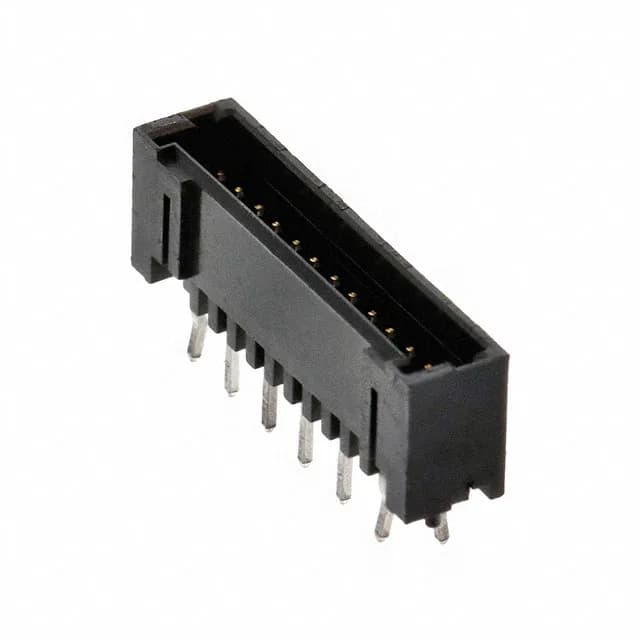

Board-to-wire signal header for tight-pitch harnesses
Its 1.50 mm pitch and 13-position single-row layout make it a dense signal interconnect for compact PCBs. Tin-plated mating contacts with 39.4 µinch thickness handle moderate mating cycles in general-purpose equipment, while the UL94 V-0 nylon housing meets flame-rating requirements for enclosed electronics.
Mating half and termination details
This header mates with Mini CT crimp-socket receptacles (e.g., 3-292207-x series) using the detent lock for retention.
