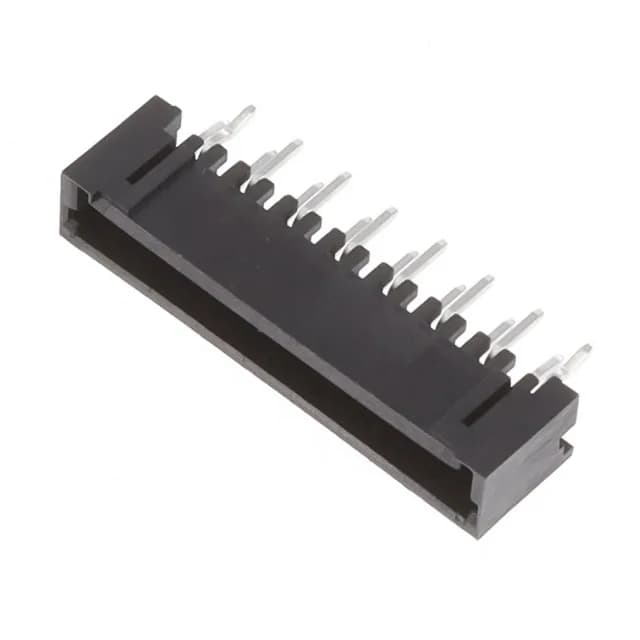

3-292207-6 TE Mini CT Header 16 Pos 1.5mm Pitch

MPN3-292207-6
Active

TE Connectivity AMP Connectors Mini CT series, 3-292207-6, Board to Cable/Wire header, 16 positions, 1.50mm pitch, single row, shrouded - 4 wall, detent lock, through hole, kinked pin solder termination, tin contacts.

$0.6300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 3-292207-6 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMini CT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-292207-6 key specifications
ParameterValue
SeriesMini CT
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating50VAC
Current ratingVaries by Wire Gauge
Operating temperature-30°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.272\" (6.91mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled

All specifications

3-292207-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.059\" (1.50mm)
Positions16
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Overall contact length0.307\" (7.80mm)
Contact finish - matingTin
Contact length - mating0.094\" (2.40mm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

16-Position Single-Row Header for Wire-to-Board Harnesses

Its 1.50mm pitch and shrouded 4-wall housing with a detent lock make it a direct fit for mating Mini CT receptacle housings in harness builds.

RoHS3 compliant, UL94 V-0 rated housing.

Mates with Mini CT receptacle housings (e.g., 3-292207-6's counterpart in the same series). The detent lock provides audible feedback on full mate — no secondary latch required. Through-hole mounting with kinked pins for solder retention. The 0.118" (3.00mm) post length suits standard PCB thicknesses; the board guide aids alignment during assembly.

Frequently asked questions

What is the closest pin-compatible alternative to 3-292207-6 in the Mini CT series?

Within the Mini CT series, the 3-292207-6 is a 16-position single-row header. A lower-position sibling (e.g., 10-position) would share the same 1.50mm pitch and detent lock but differ in circuit count. No direct pin-compatible alternative with identical position count is listed; verify the BOM position count before substituting.
