TE Connectivity AMP Mini CT series, Board to Cable/Wire, Header, Male Pin, 30 Positions, 1.50mm Pitch, 2 Rows, Through Hole, Shrouded - 4 Wall, Detent Lock, Tin Mating Finish, -30°C to 105°C, UL94 V-0
| Parameter | Value |
|---|---|
| Series | Mini CT |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation height | 0.291\" (7.40mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 30 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.114\" (2.90mm) |

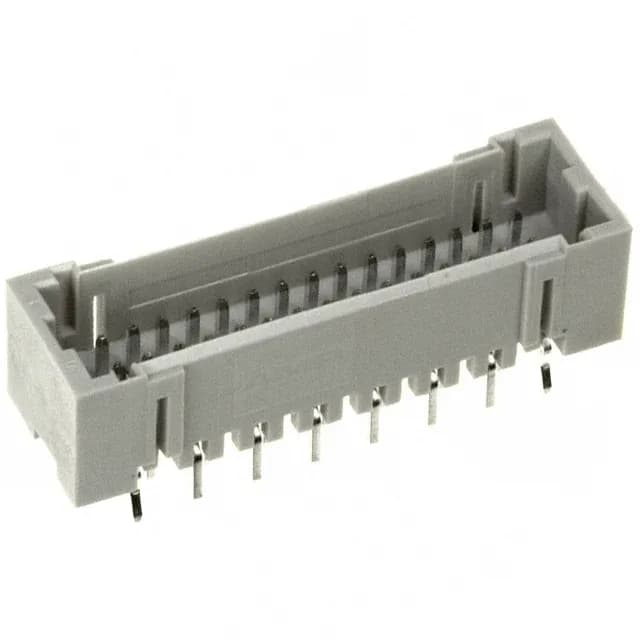

The 3-292208-0 is a 30-position, 1.50 mm pitch header from the Mini CT series, designed for board-to-cable/wire connections. The shrouded 4-wall housing and detent lock provide positive retention against vibration, and the through-hole kinked-pin termination gives a reliable solder joint on the PCB.
This header mates with a Mini CT series receptacle housing (cable side) using the matching crimp terminals. The 1.50 mm pitch and detent lock are designed for a positive-latch pair. Confirm the receptacle part number against your wire gauge and circuit count.
