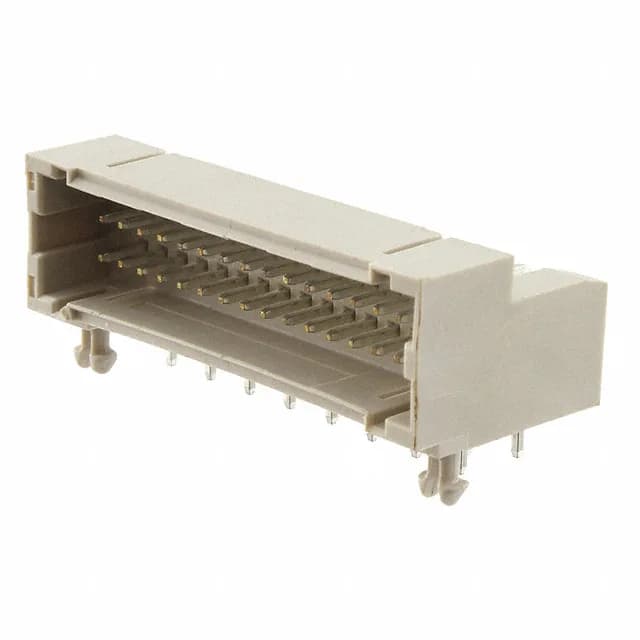

TE Connectivity AMP Connectors Mini CT header, order code 3-292262-0, 30 positions, dual row, 1.50 mm pitch, 50 VAC, tin-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Mini CT |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation height | 0.358\" (9.10mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 30 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
The 3-292262-0 is the 30-circuit member of the TE Mini CT header line, a shrouded 4-wall board-to-wire header with a detent lock and a board lock for solder-through-hole retention. It carries tin-plated mating contacts, mounts through-hole right-angle, and is rated 50 VAC — the current rating depends on the wire gauge used.
The 3-292262-0 is orderable through TE Connectivity AMP Connectors distribution channels. Request a quote for current pricing and availability.
