34-position shrouded header for board-to-wire

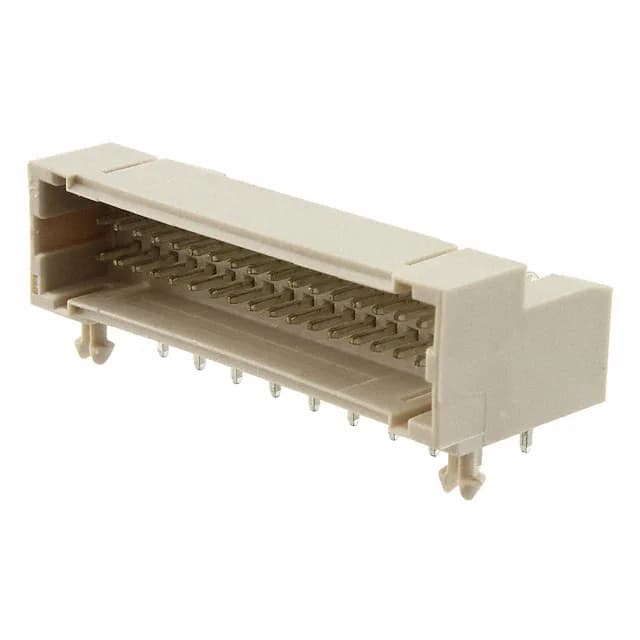

The 3-292262-4 is the 34-circuit member of TE's Mini CT header line, a dual-row shrouded header with a 1.50 mm pitch and a 2.00 mm row spacing. Tin-plated mating contacts, a detent lock, and board locks hold the connection in place; the through-hole right-angle termination suits board-edge cable routing.
Pitch and footprint fit
The 1.50 mm pitch and 2.00 mm row spacing set the board footprint — the 34 positions load all circuits, and the shrouded 4-wall housing with detent lock prevents mis-mating. Rated 50 VAC, temperature range -30°C to 105°C, and UL94 V-0 housing material — the board lock aids SMT reflow retention in the through-hole solder process.
